Remove / Install Driver's Airbag

Guide Quick Jump:

'91-'94 S-Series     '95-'99 S-Series     '00-'02 S-Series

'91-'94 S-Series

Author: PurdueGuy

Needed:



Tools:

Ratchet

15/16" socket

flat-head screwdriver

Removal



Step 1: Disable the Airbags. This is VERY IMPORTANT!

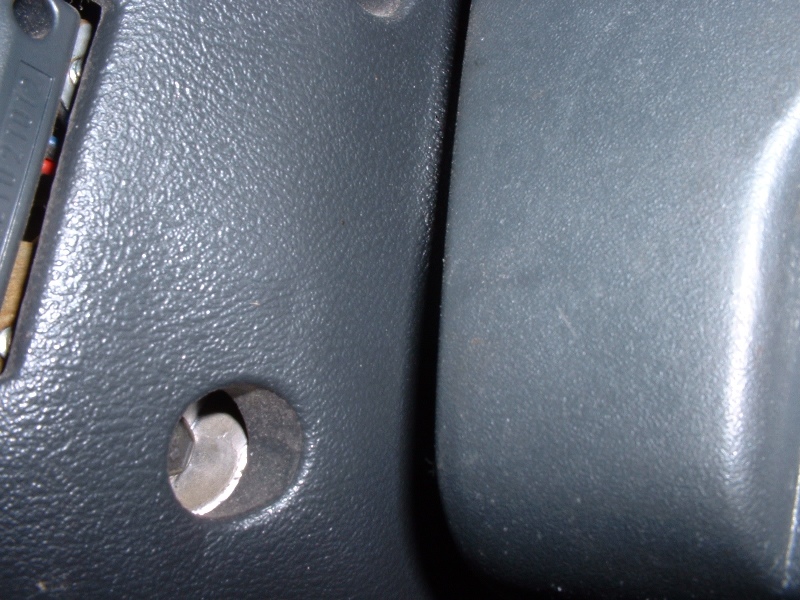

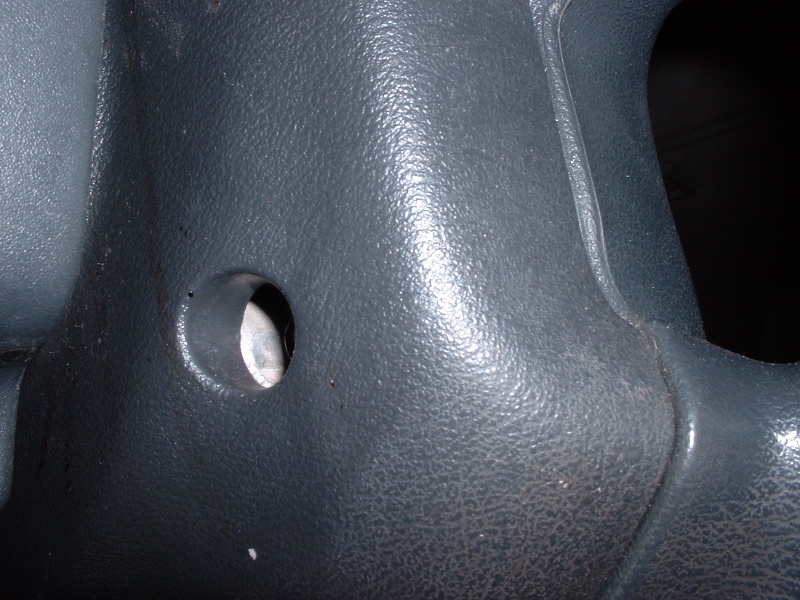

Step 2: Remove 4 screws from back of steering wheel.  15/16 inch screws.

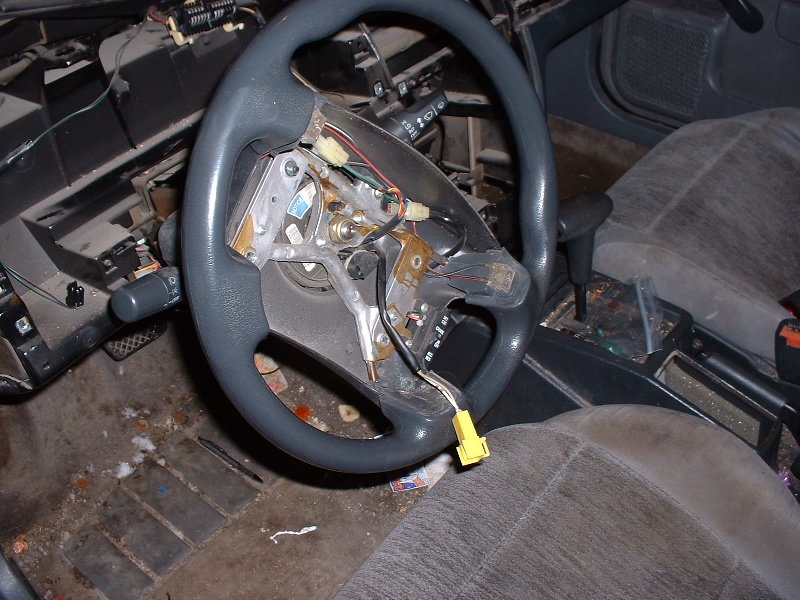

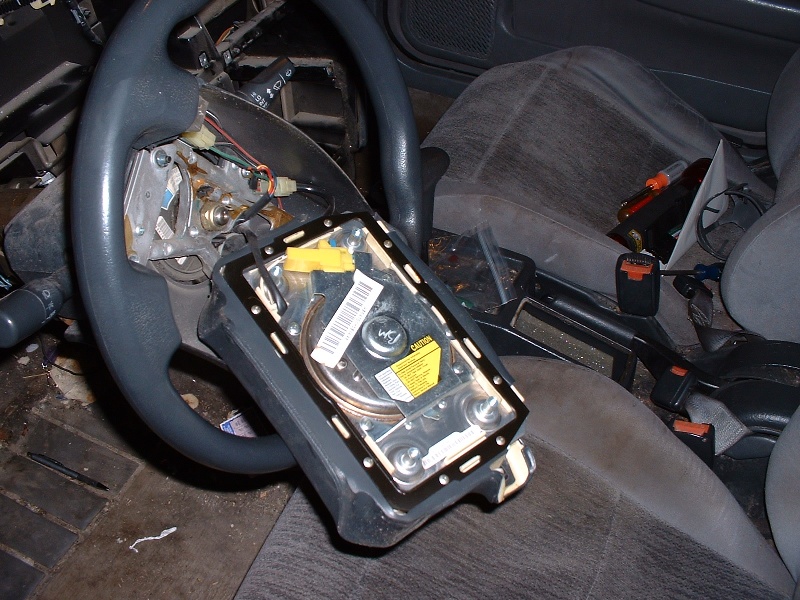

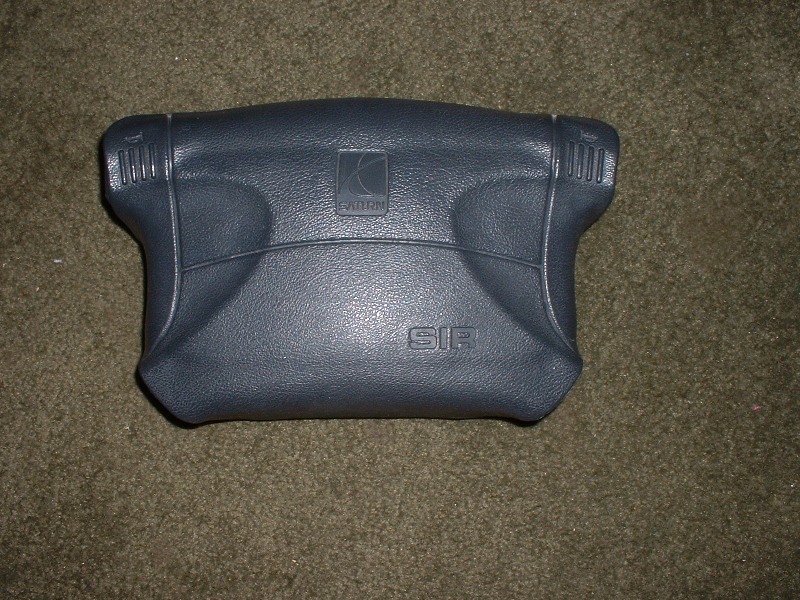

Step 3: Slide the airbag out of the steering wheel.

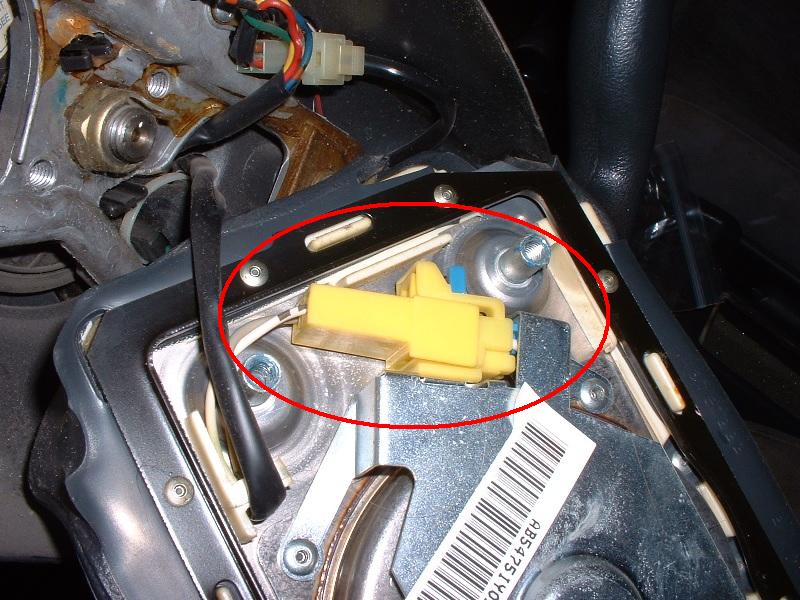

Step 4: Disconnect the wiring harness.  Use the flathead screwdriver to release the clip and disconnect the harness.





Installation



Installation is reverse of removal.

'95-'99 S-Series

Author:

(Sorry, this guide has not been created)

'00-'02 S-Series

Author:

(Sorry, this guide has not been created)
