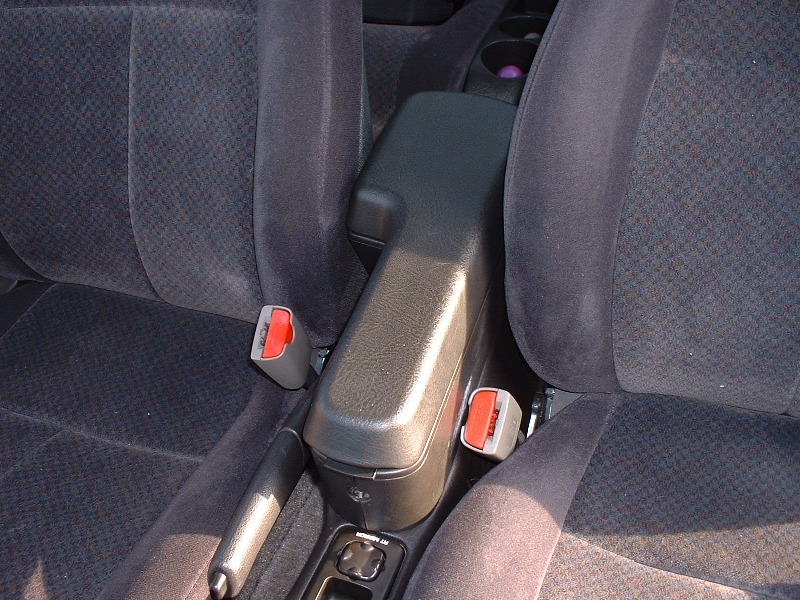

Install / Remove Center Armrest

Guide Quick Jump:

'91-'94 S-Series     '95-'99 S-Series     '00-02 S-Series

'91-'94 S-Series

Author:

(Sorry, this guide has not been created)

'95-'99 S-Series

Author: PurdueGuy

Needed:



Tools:

Phillips screwdriver

Flat-head screwdriver

Installation

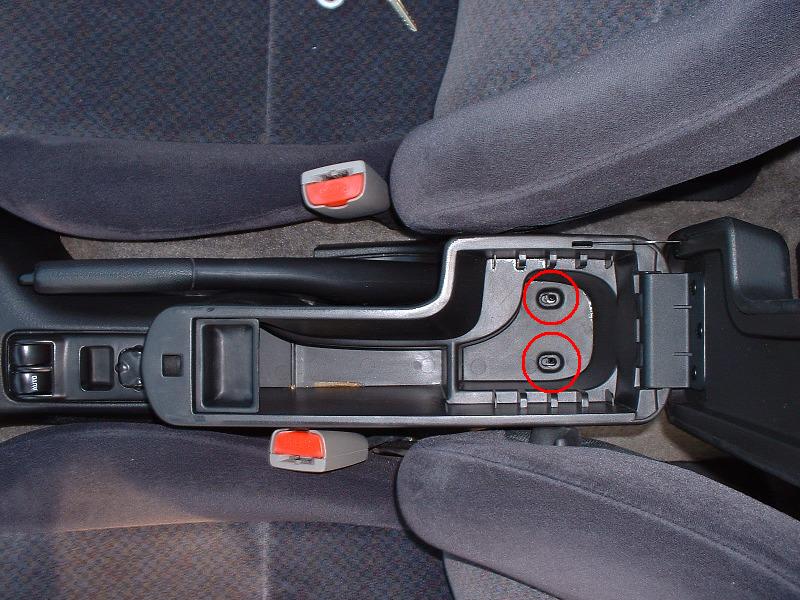

Step 1: Remove screw hole cover. At the back of the center console, there is a plastic cover over 2 screw holes.  The location is marked below, but the cover is not shown.  Just pop the cover loose with the flat-head screwdriver.





Step 2: Set the armrest in the hole. Pretty straightforward.

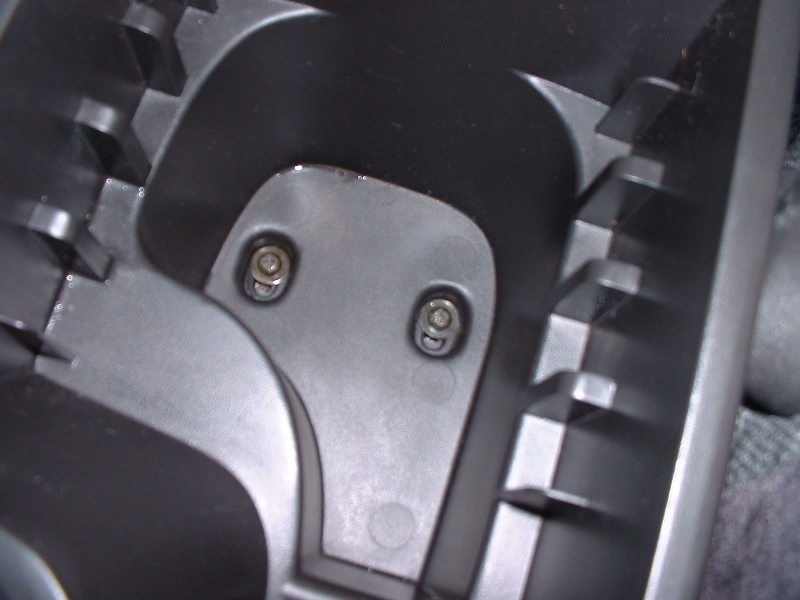

Step 3: Screw it in. Put 2 screws in at the back of the inside of the armrest.





Removal is the reverse of installation

'00-'02 S-Series

Author:

(Sorry, this guide has not been created)
