Install / Remove
Corner Light
(all '97-'00
SC, '00-'02 SL/SW)
Guide Quick Jump:
'91-'95 SL &
SW '91-'96 SC
'96-'99 SL & SW
'97-'00 SC
'00-02 SL & SW
'01-'02 SC
'91-'95 SL & SW
Author:
(Sorry, this guide has not been created)
'91-'96 SC
Author:
(Sorry, this guide has not been created)
'96-'99 SL & SW
Author:
(Sorry, this guide has not been created)
'97-'00 SC
Author:
PurdueGuy
Needed:
Tools:
T-15 Torx screwdriver
Removal

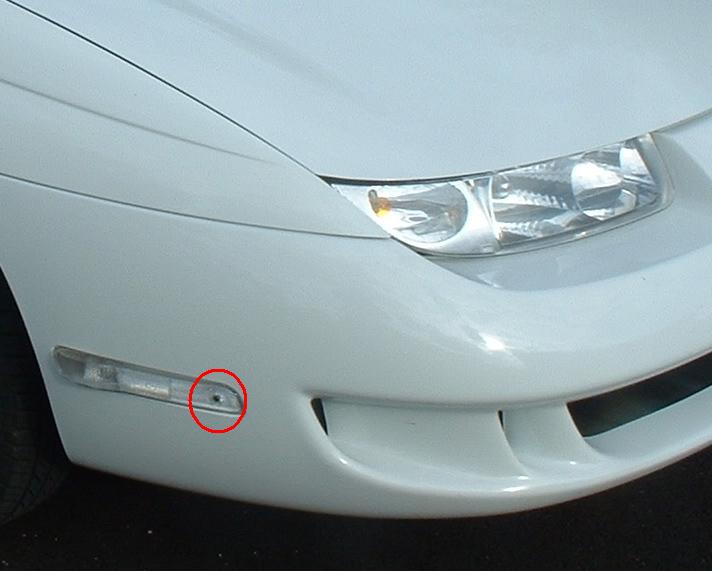

Step 1: Take the screw out
with the T-15 torx screwdriver. Normal thread.

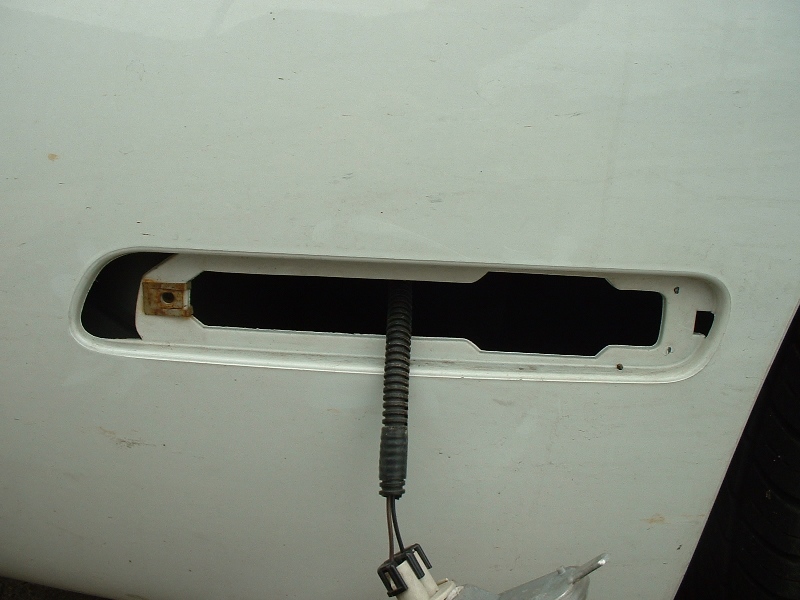

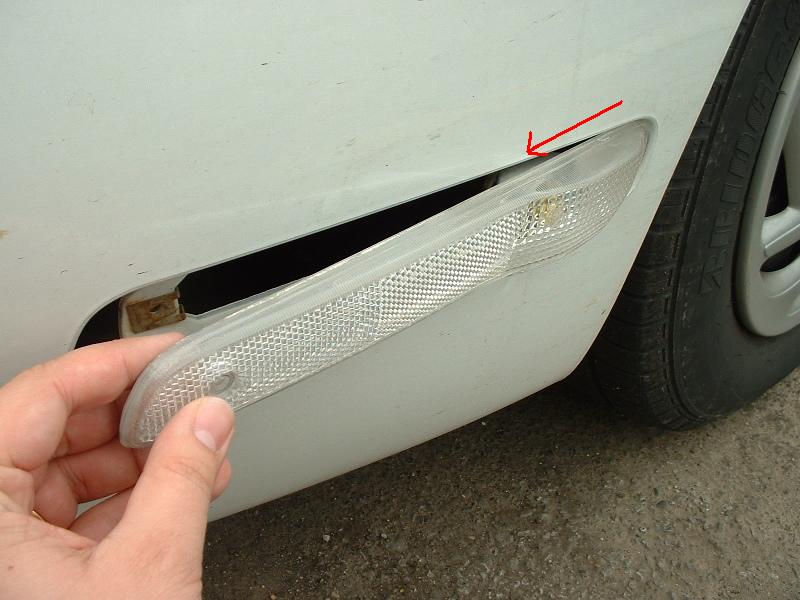

Step 2: Pull out & forward.
The back is held in with a tab.

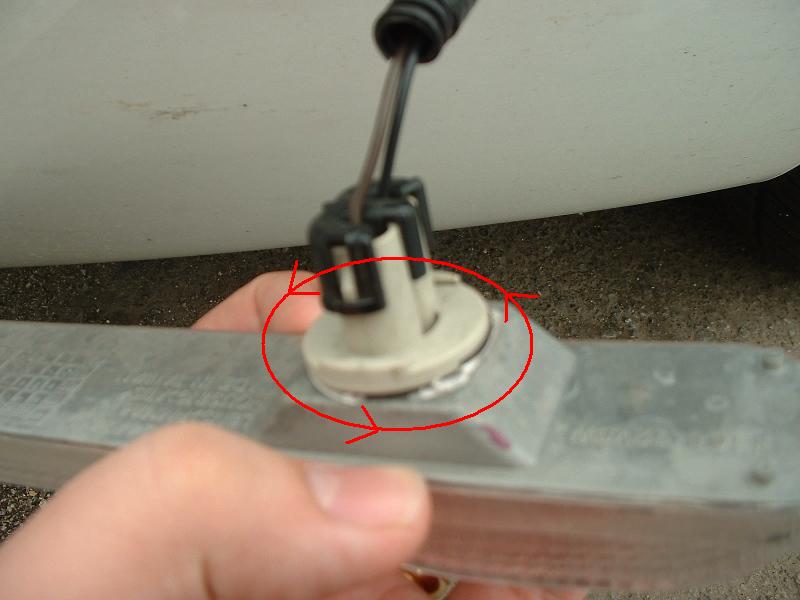

Step 3:
Untwist the bulb socket. The socket untwists counterclockwise as you're looking
at the back of the lens.
Installation is the
reverse of removal
'00-'02 SL & SW
Author:
PurdueGuy
('97-'00 coupe is
shown, but these models use the exact same corner lens)
Needed:
Tools:
T-15 Torx screwdriver
Removal
Step 1: Take the screw out
with the T-15 torx screwdriver. Normal thread.
Step 2: Pull out & forward.
The back is held in with a tab.
Step 3:
Untwist the bulb socket. The socket untwists counterclockwise as you're looking
at the back of the lens.
Installation is the
reverse of removal
'01-'02 SC
Author:
(Sorry, this guide has not been created)
