Remove / Install the Dashboard Cover

Guide Quick Jump:

'91-'94 S-Series     '95-'99 S-Series     '00-'02 S-Series

'91-'94 S-Series

Author:

(Sorry, this guide has not been created)

'95-'99 S-Series

Author: PurdueGuy

Needed:



Tools:

Ratchet

7mm socket

Flat-head screwdriver

Removal

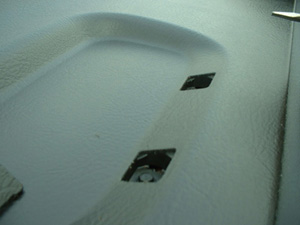

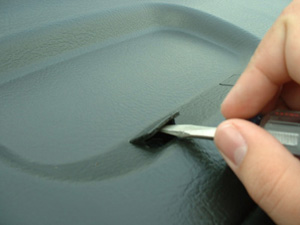

Step 1: Remove the bolt covers. There are 2 bolts holding the dash down in the center of the dash.  They are covered by small, square plastic pieces.  Use the flat-head screwdriver, insert it in the groove, and gently pry in and up.  The pieces should pop right out.





Step 2: Remove the bolts. (I will try to add the specific socket size you need later - it is metric)  The bolts are normal thread, so loosen them counter-clockwise.

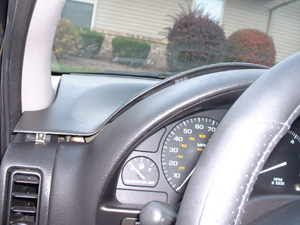

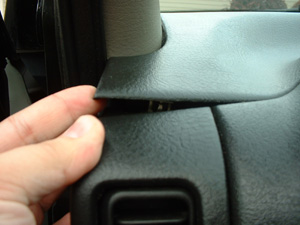

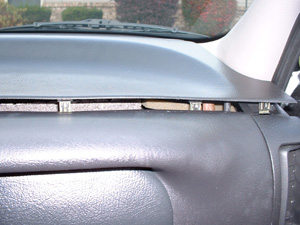

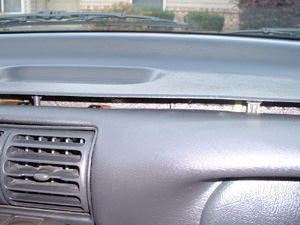

Step 3: Unsnap the dash cover. The rest of the dash top is held down with metal snaps.  Gently work your way along the dash top unsnapping the top.  There are also a couple of pieces of velcro in the back of the dash, which will detach easily as you pull the dash out, after unsnapping the metal snaps.

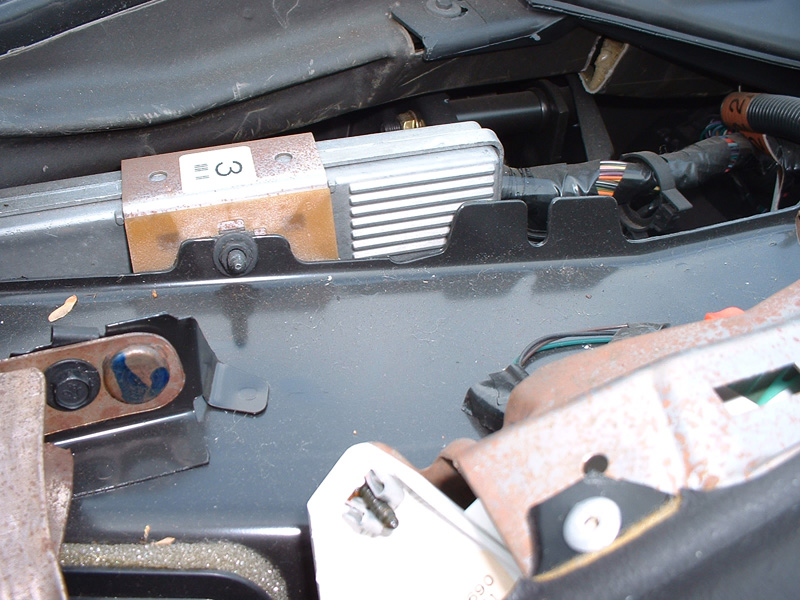

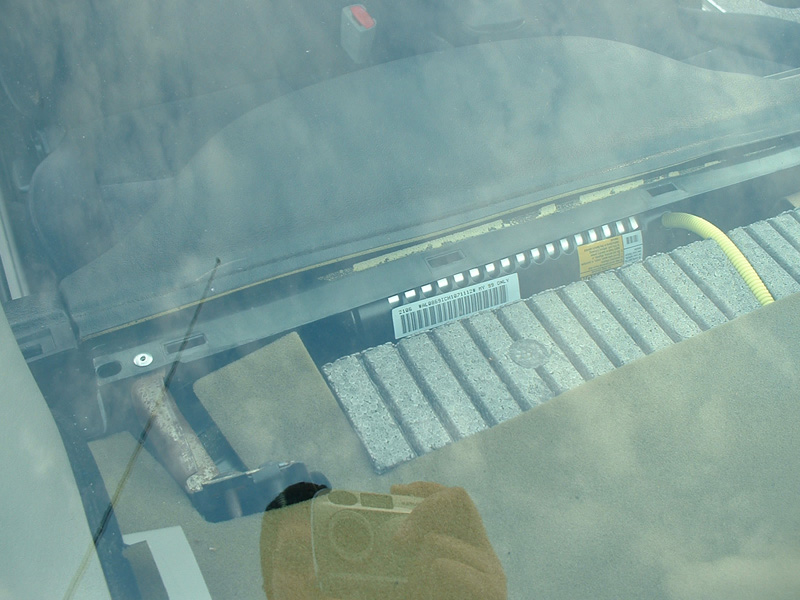

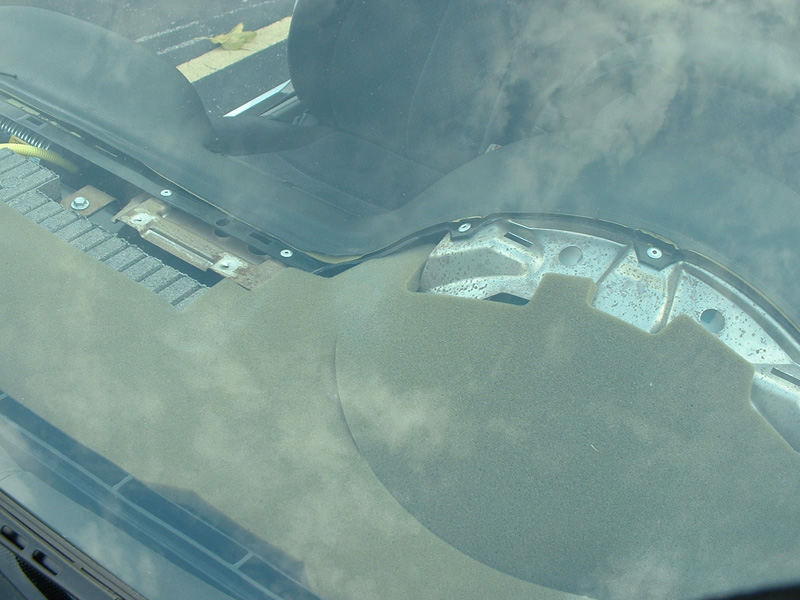

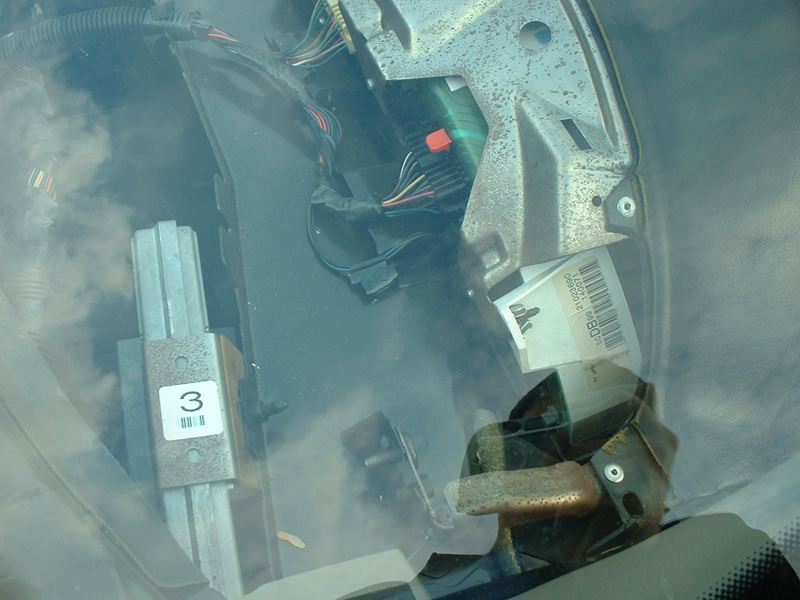

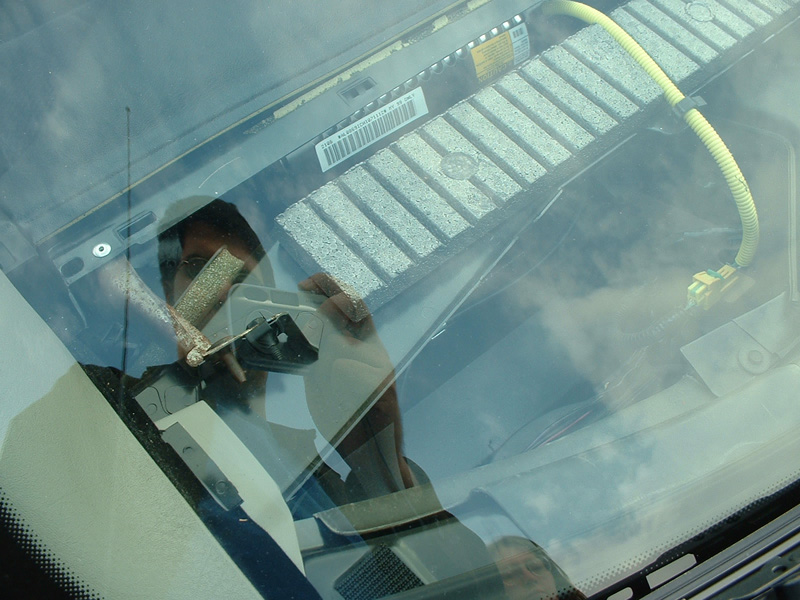

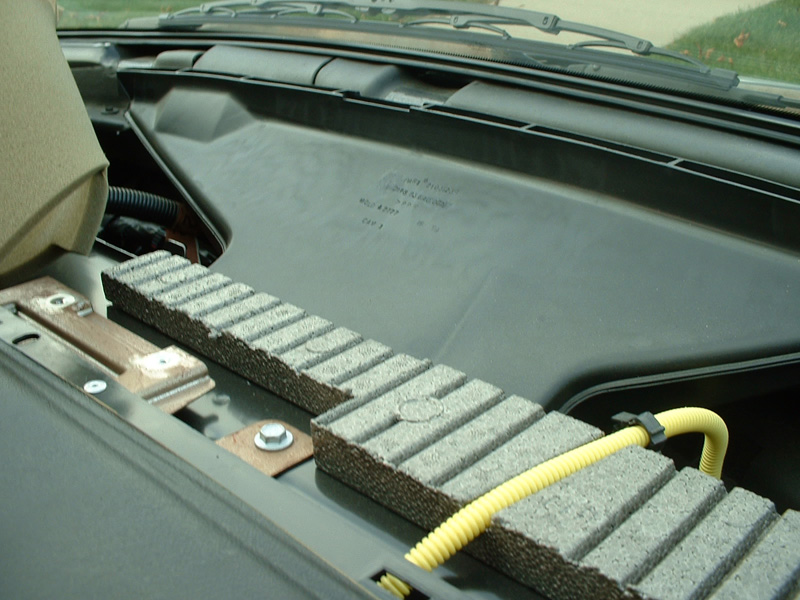

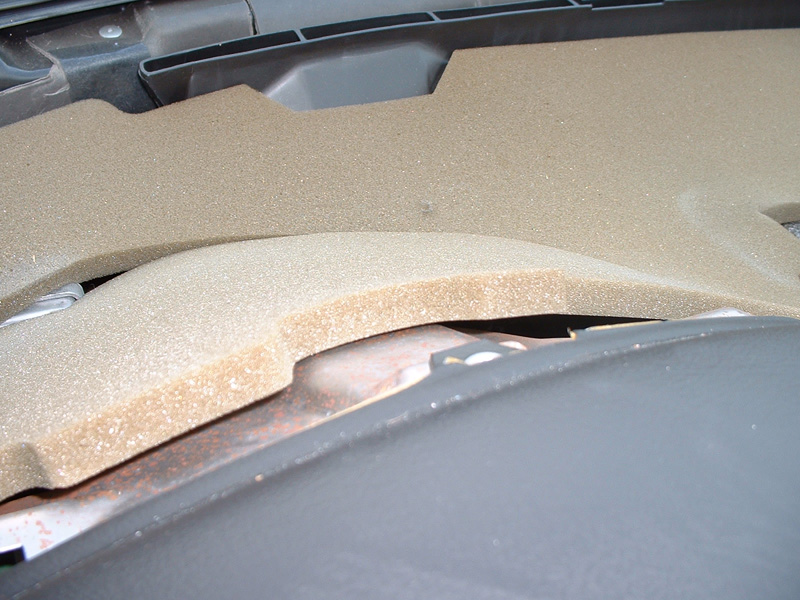

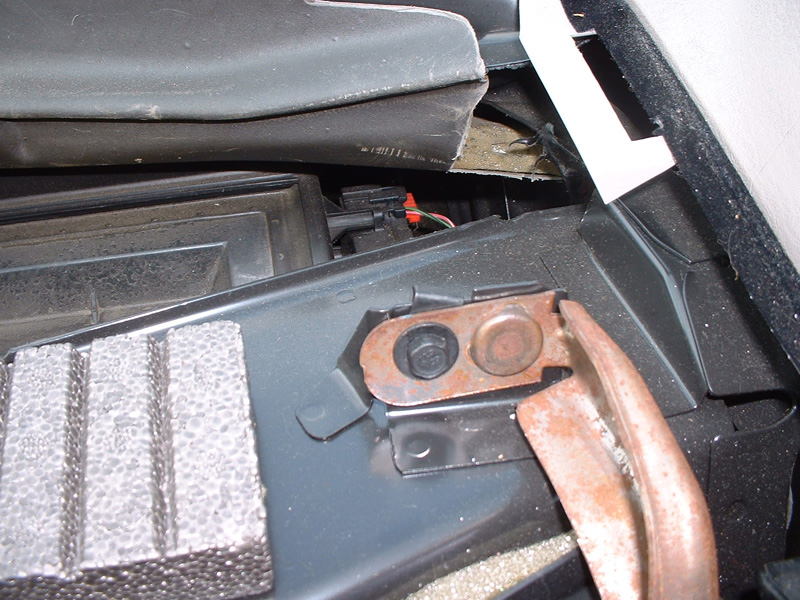

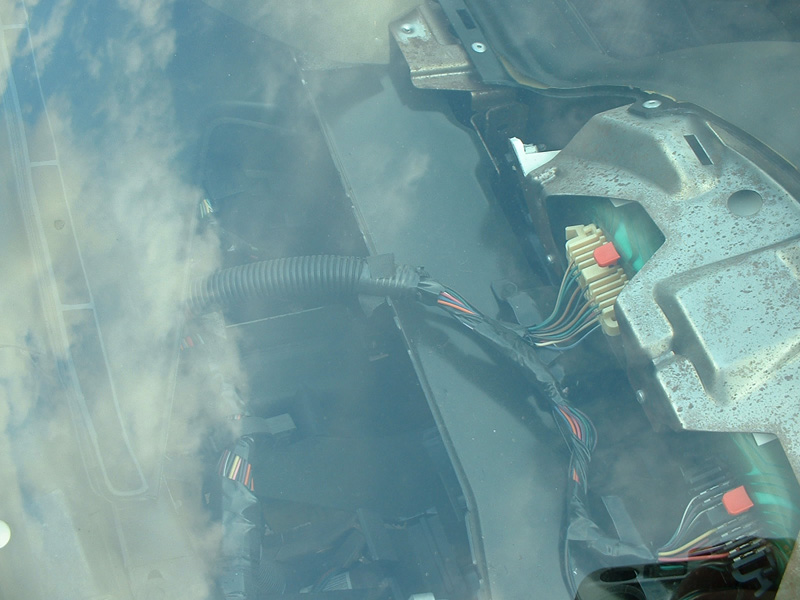

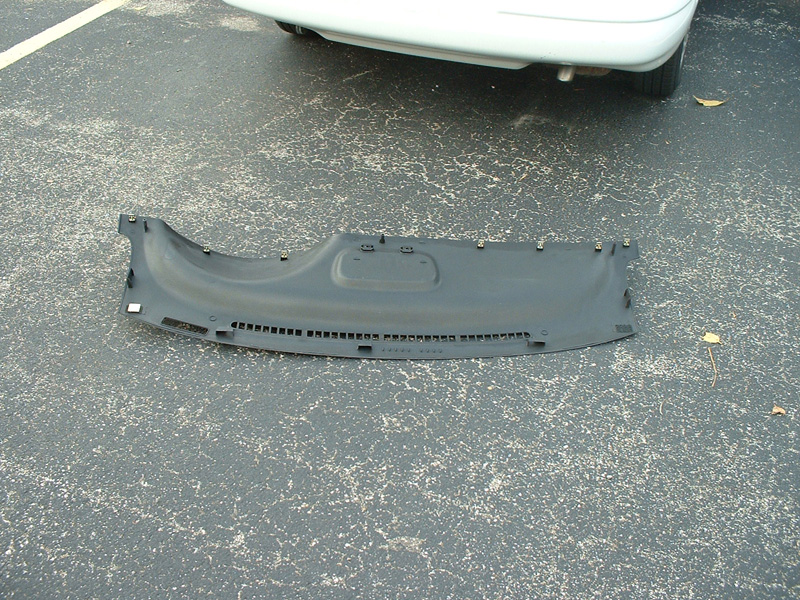

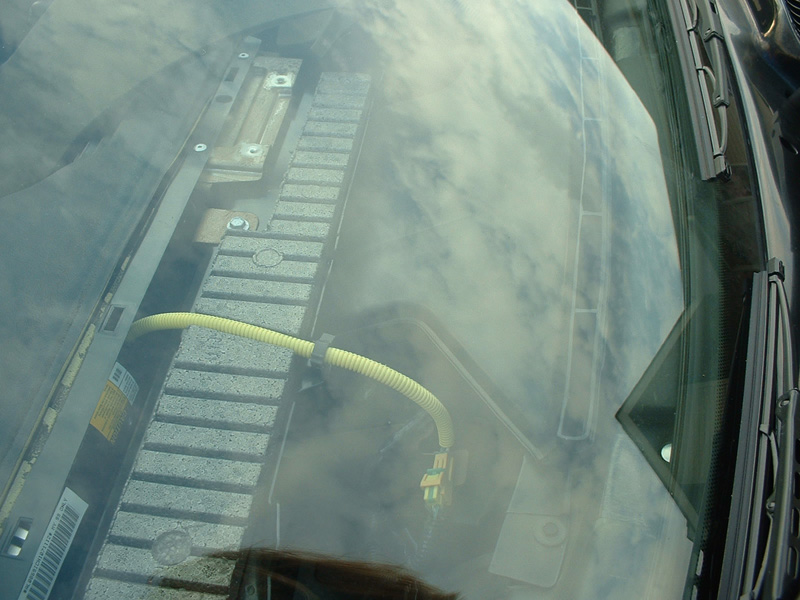

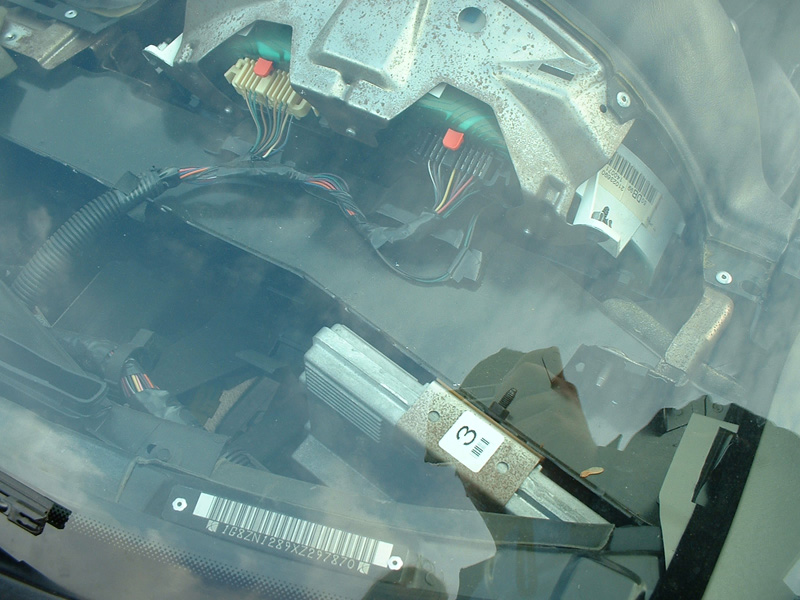

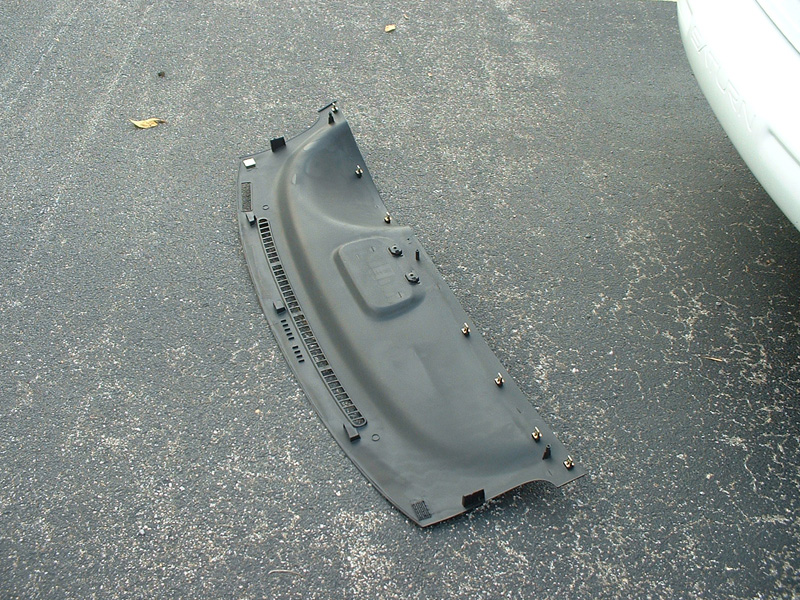

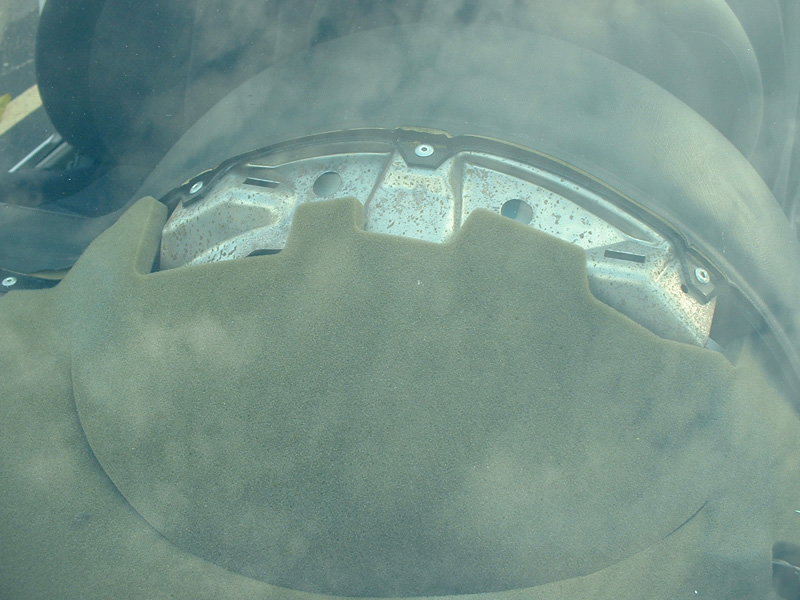

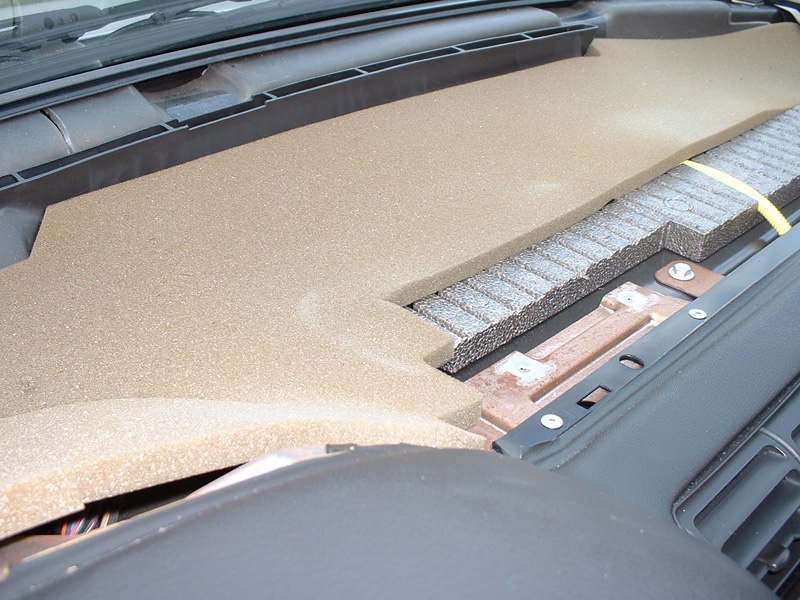

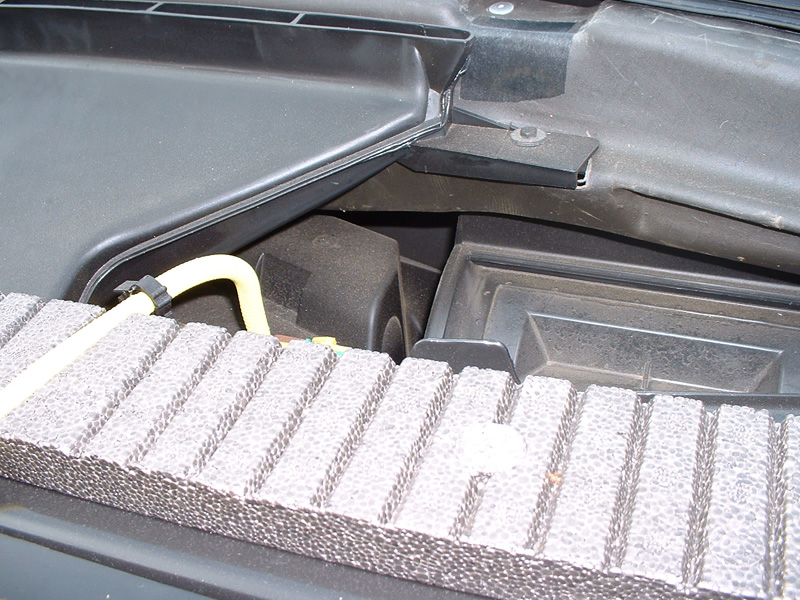

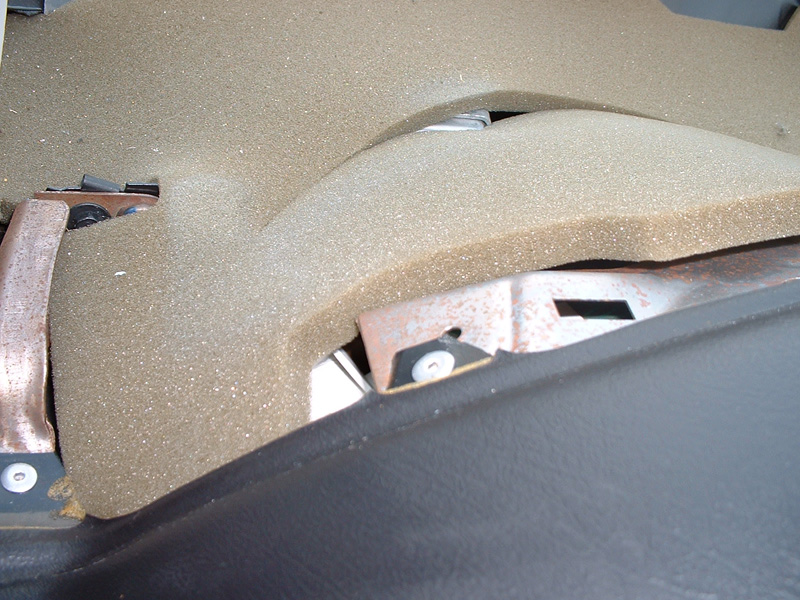

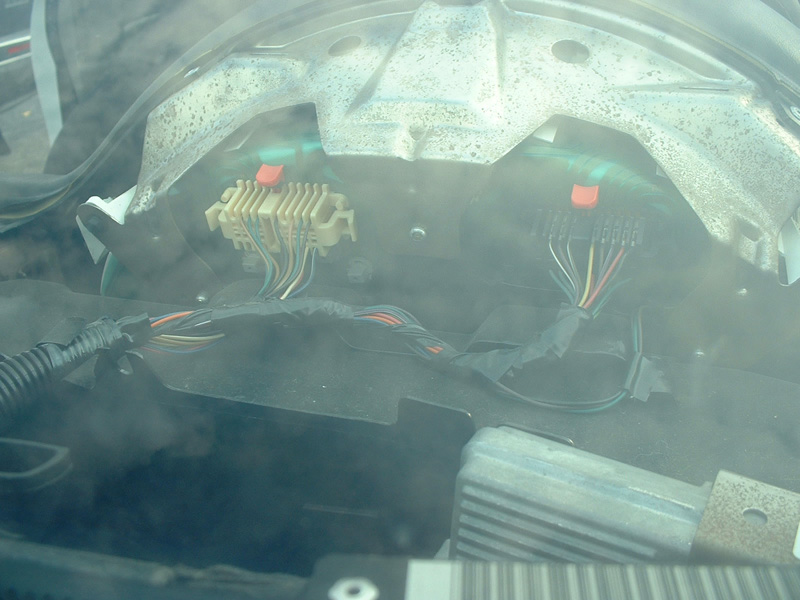

Some pictures of what you'll find after disassembly. (Click to enlarge)



'00-'02 S-Series

Author:

(Sorry, this guide has not been created)
