Remove / Install Dome Light

All S-Series

Author: PurdueGuy



Needed:



Tools:

Flathead screwdriver

Removal



*NOTE* Don't simply try to pry downward on the dome light - you will break two tabs off!

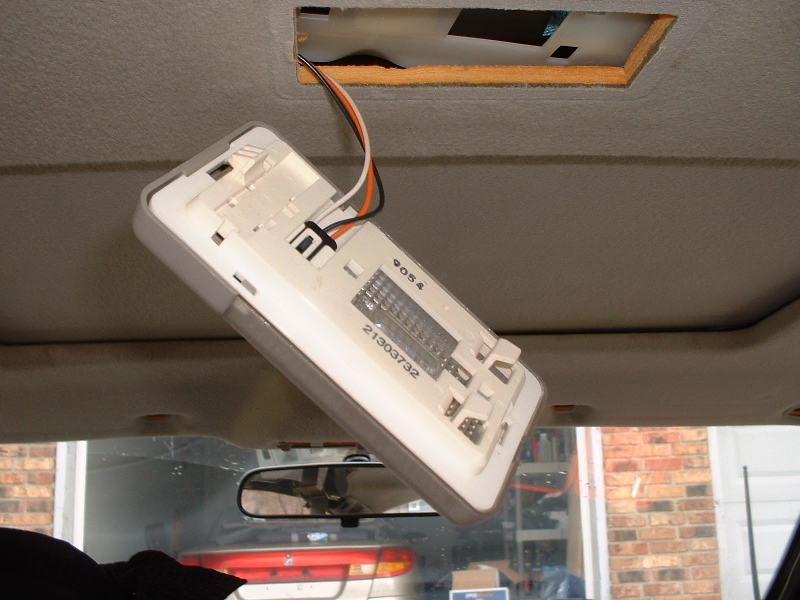

Step 1: Push the dome lamp on the switch end toward the light end, and gently pull downward at the same time.  There are 3 tabs that hold the light - 2 of them one one end, which are sprung.  Compressing the sprung tabs allows clearance for the third, on the other end of the dome light.





Step 2: Use the flathead screwdriver to pry the wiring harness free from the clip and pull it loose.





Installation



Installation is the reverse of removal.
