Remove /
Install Headlights
Guide Quick Jump:
'91-'94 S-Series
'95-'99 S-Series
'00-'02 S-Series
'91-'95 SL, SL1, SL2
'93-'95 SW1, SW2
'93-'96 SC1
Author:
(Sorry, this guide has not been created)
'91-'92
SC
'93-'96 SC2
Author:
(Sorry, this guide has not been created)
'96-'99
SL, SL1, SL2
'96-'99 SW1, SW2
Author:
(Sorry, this guide has not been created)

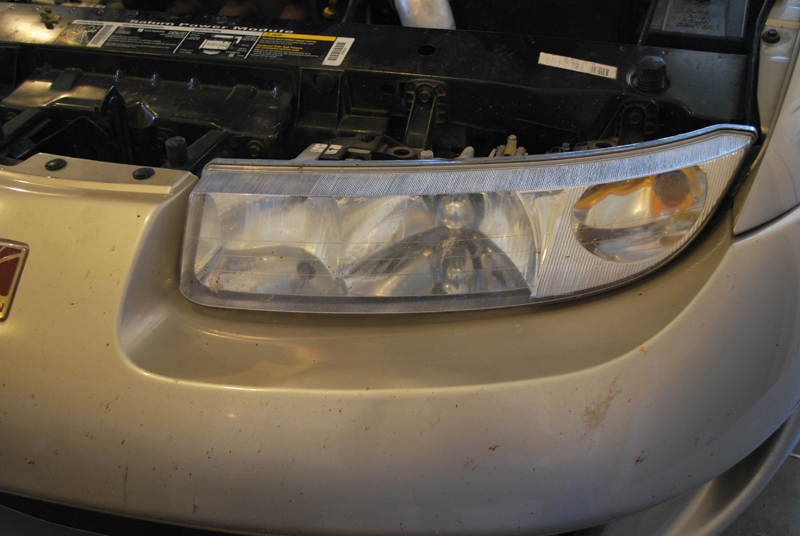

'97-'00 SC1, SC2
Author:

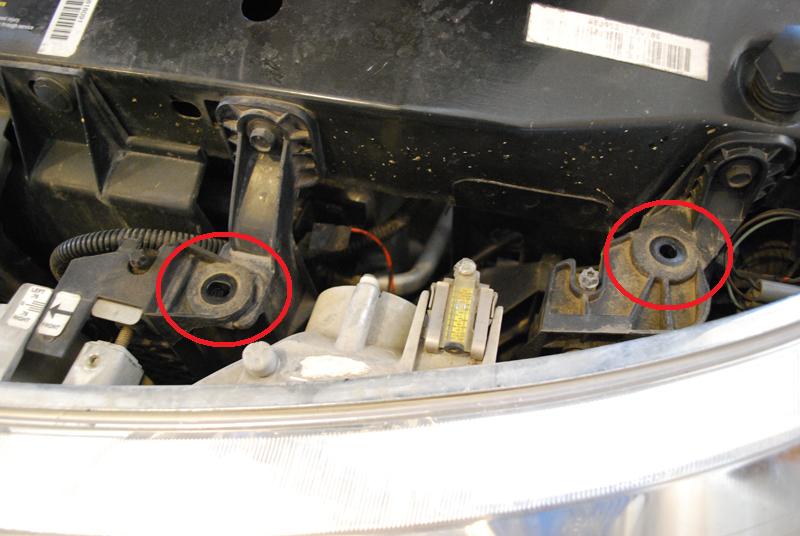

Step 1:
Remove 2 bolts. 10mm
Step 2: Lift the
headlights, then move them forward. The bottom of the
headlight bracket rests in a notch, so the assembly has to
be lifted before being pulled forward.

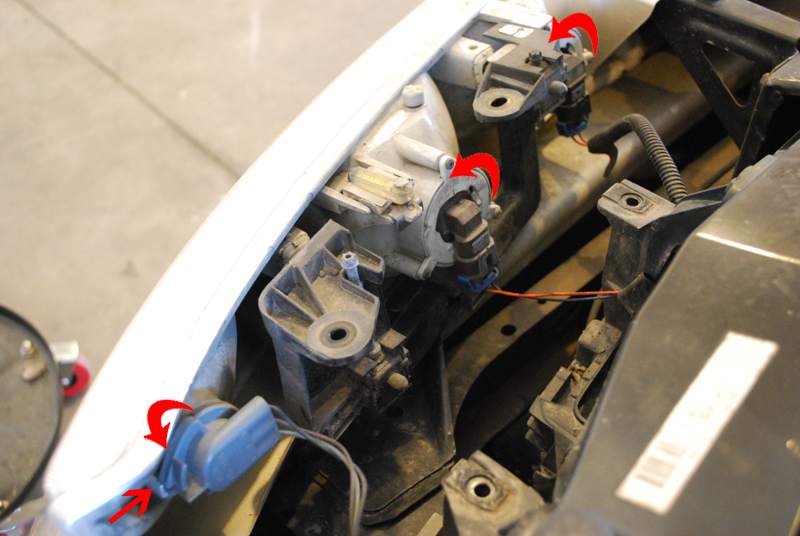

Step 3: Remove the
bulbs from the headlight assembly. The headlight
bulbs twist about 1/4 turn to line up tabs and pull straight
back to remove. The turn signal bulb has a tab that
has to be depressed before twisting and removing the bulb.
'00-'02 SL, SL1, SL2
'00-'02 SW1, SW2
Author:
(Sorry, this guide has not been created)
'01-'02 SC1, SC2
Author:
(Sorry, this guide has not been created)
