Remove / Install Stock Intake
System
(Airbox Lid - Throttlebody)
Guide Quick Jump:
'91-'94 SOHC
'95-'02 SOHC / '91-'99 DOHC
'00-'02 DOHC
'91-'94 SOHC
Author:
(Sorry, this guide has not been created)
'95-'02
SOHC
'91-'99 DOHC
Author:
PurdueGuy
In this DIY, we'll be removing
most of the stock air intake system, including the airbox
lid, and tubing leading to the throttlebody.

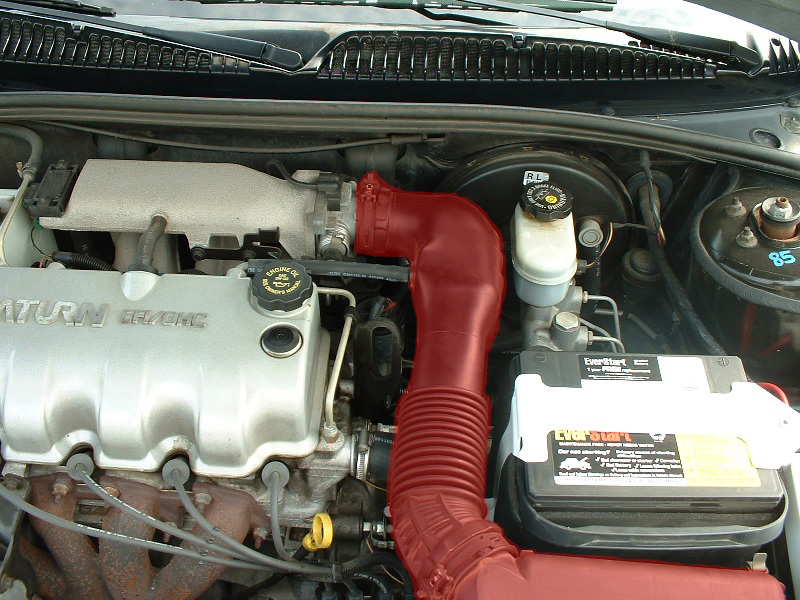

(Section to be removed
highlighted)
Needed:
Tools:
Locking pliers or
flathead screwdriver (depending on your clamp style
Removal
Step 1)

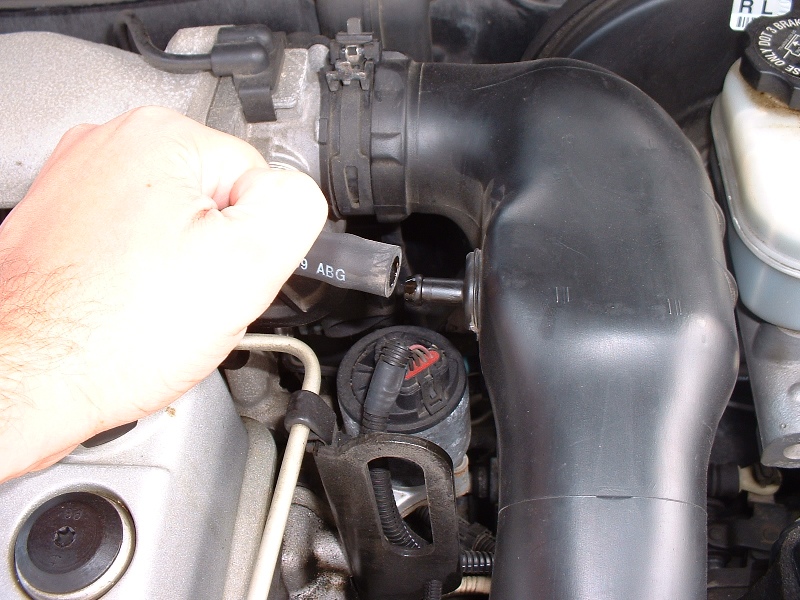

Pull the rubber hose from the side of the intake.
Step 2)

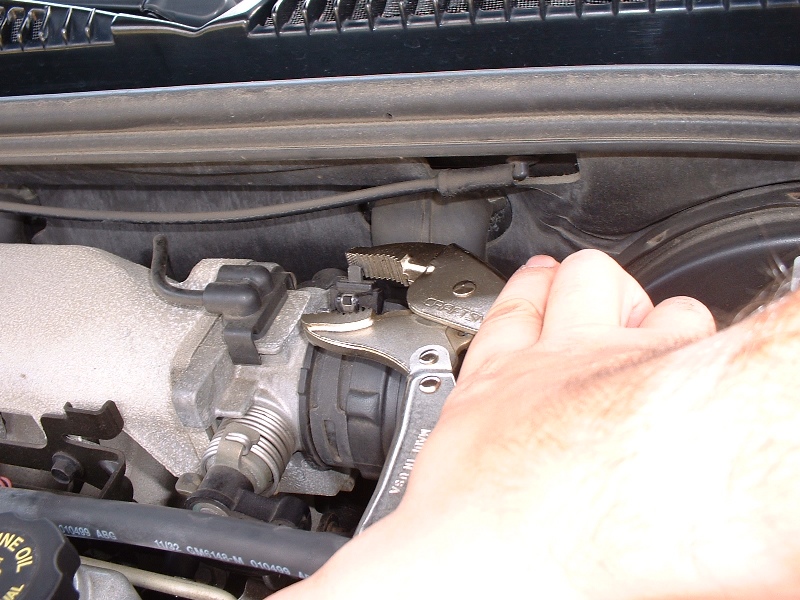

Use your locking pliers to squeeze the spring clamp together
so it will loosen. Lock into place.
(note that some intakes may
use a different style clamp, most likely loosened by
turning a screw to loosen the clamp, like a common hose clamp)
Step 3)

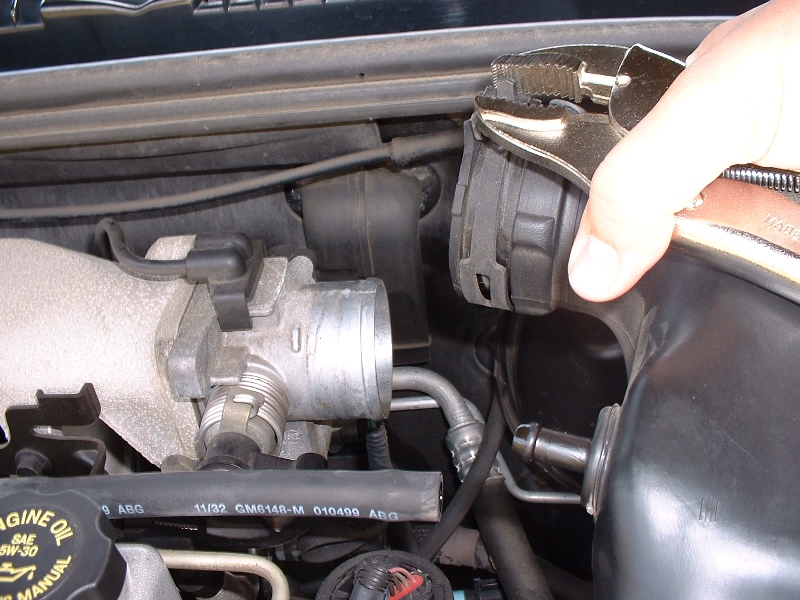

With the pliers still locked, pull the intake tube off the
throttlebody.
Step 4)

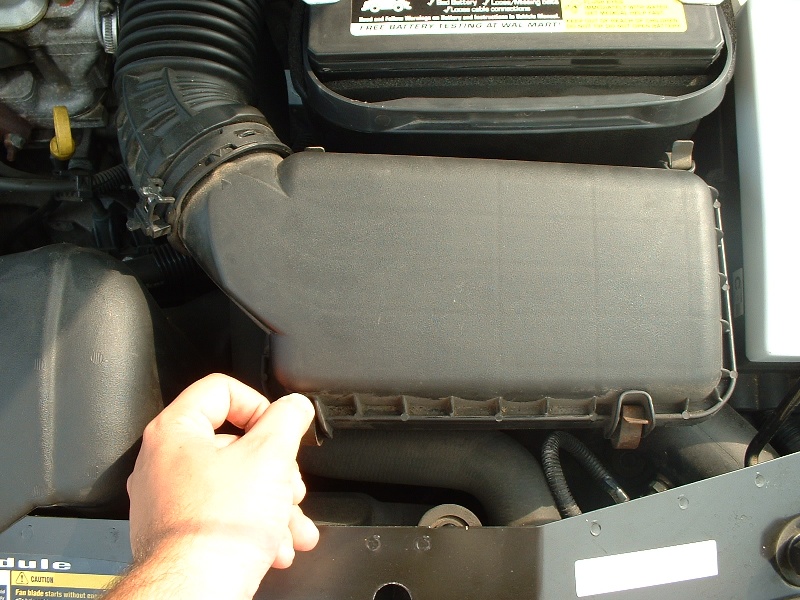

Unclick the 4 clips that hold the airbox lid on.
At this point this portion of
the intake is loose and can be removed.

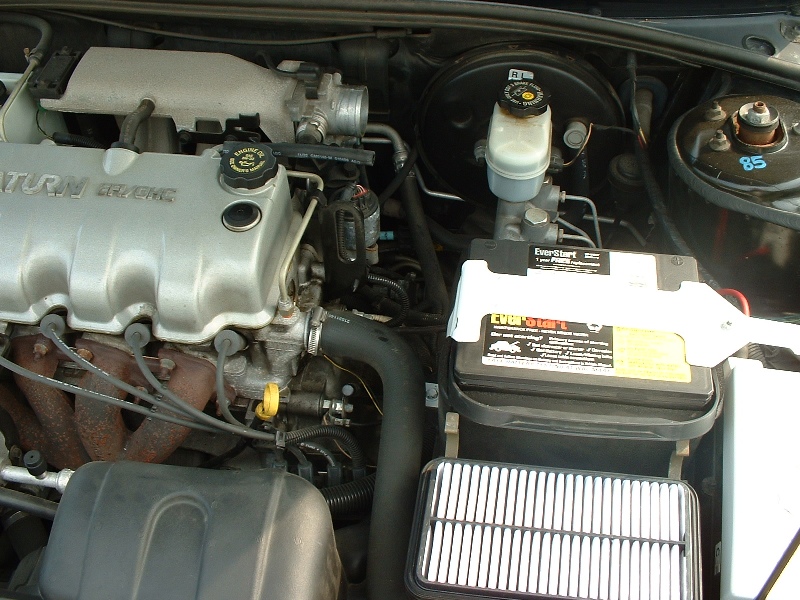

(Engine bay with intake section
removed)
'00-02
DOHC
Author:
(Sorry, this guide has not been created)
