Remove / Install Interior Door Handle

Guide Quick Jump:

'91-'95 SL & SW / '91-'96 SC     '96-'02 SL & SW / '97-'02 SC

'91-'95 SL & SW

'91-'96 SC

Author:

(Sorry, this guide has not been created)

'96-'02 SL & SW

'97-'02 SC

Author: PurdueGuy

Video Author: richpin06



Needed:



Tools:

Flat-head screwdriver or other prying tool

Philips screwdriver

Removal

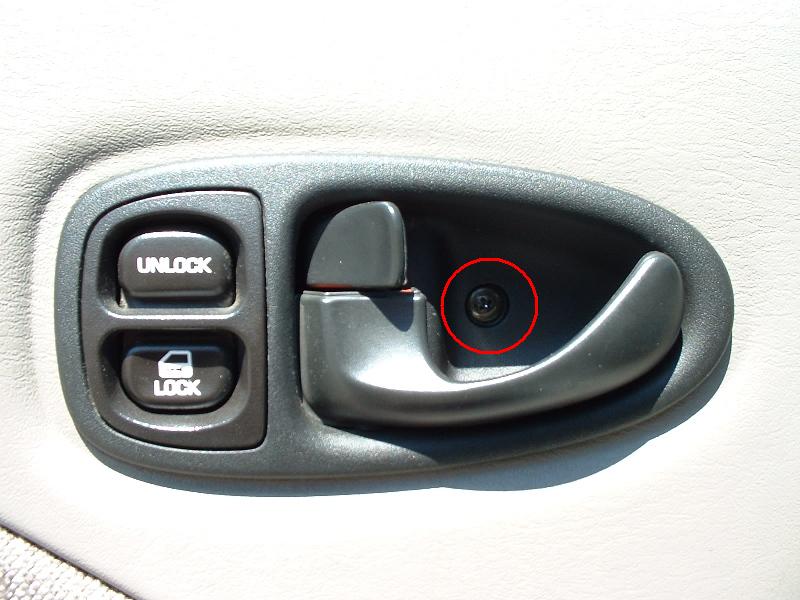

Step 1: Remove screw in other handle.

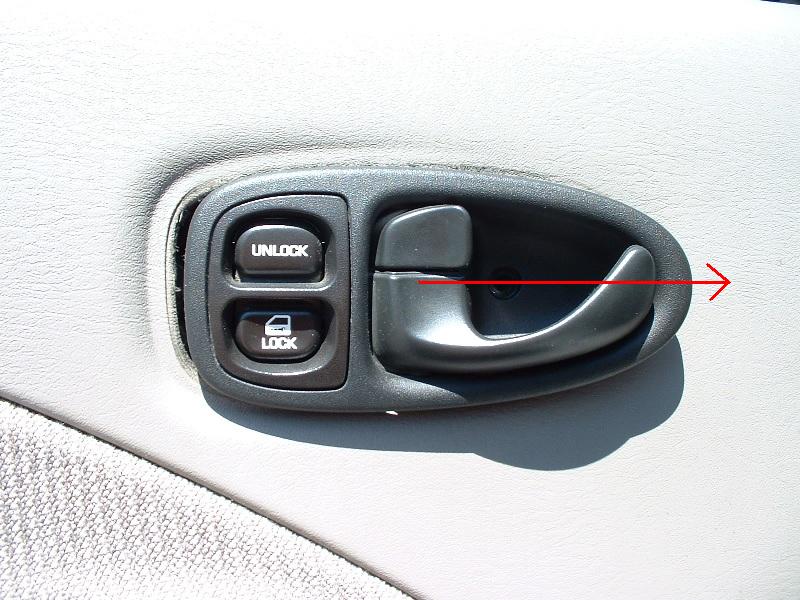

Step 2: Slide the handle assembly forward and out.  It won't come all the way out yet.

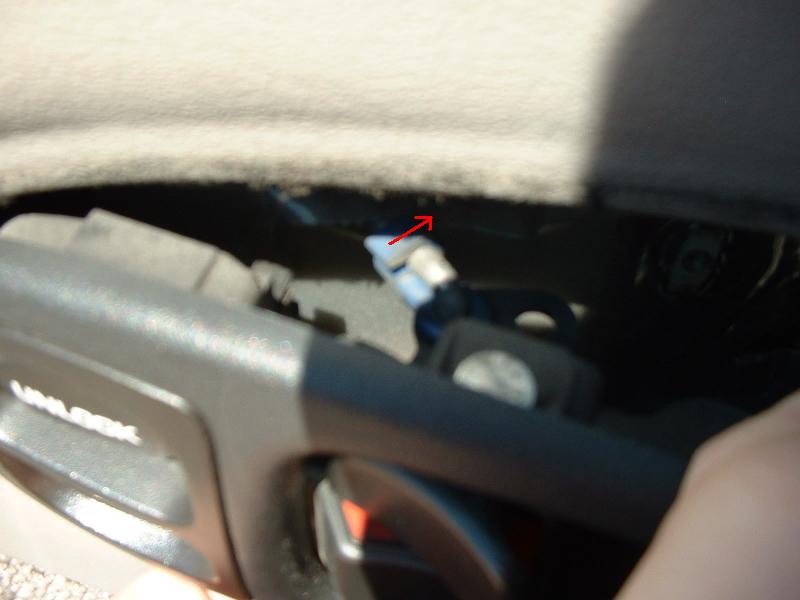

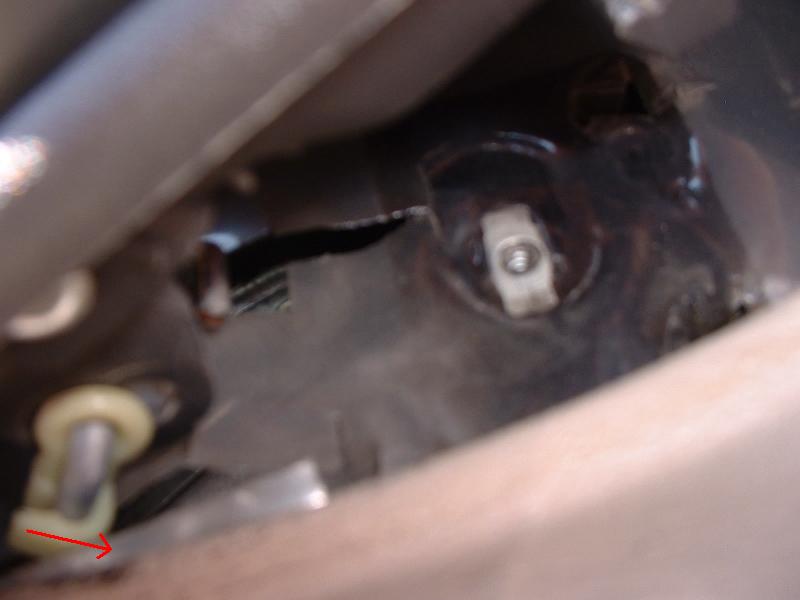

Step 3: Detach the handle from the lock and latch rods.  A plastic clip on each rod has to be unclipped, then the rod can lift out of the hole.

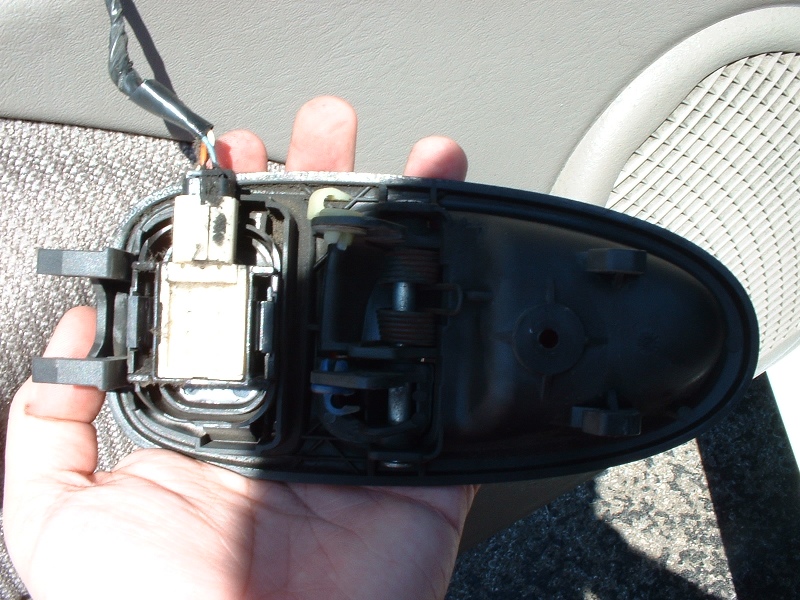

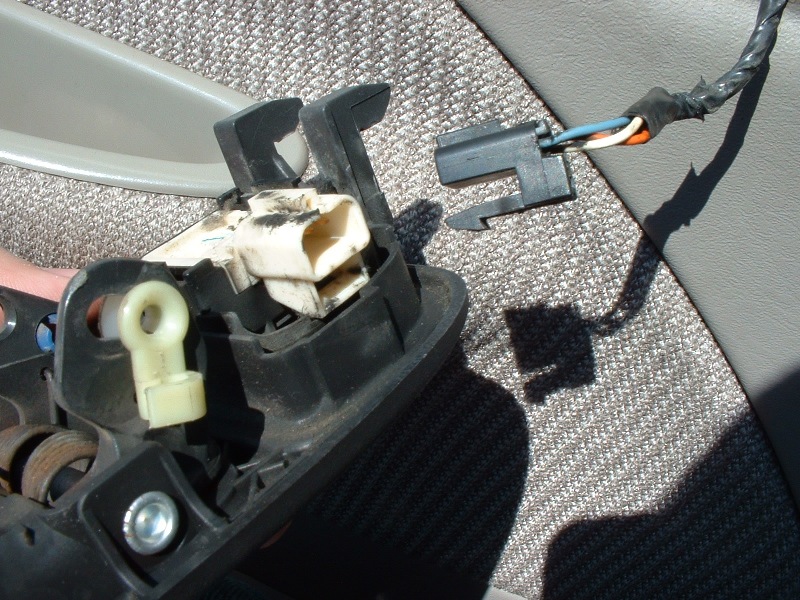

Step 4: Remove power lock wiring harness (if equipped).  With the 2 rods detached, you can pull the assembly out & get access to the harness.  Use the flat-head screwdriver to pry the clip on the harness loose, then remove the harness.





Installation



Installation is pretty much the reverse of removal.
