Remove Outside Mirror

All S-Series

Author: PurdueGuy

Needed:



Tools:

10mm deep socket

Removal



Step 1: Remove triangular trim piece.  Then remove the foam chunk from behind the trim piece.

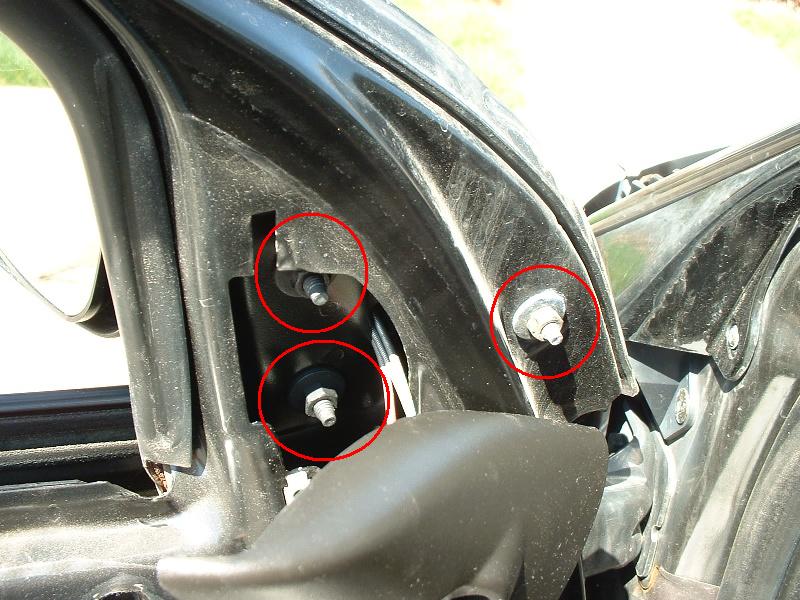

Step 2: Remove 3 nuts. Using the 10mm deep socket, remove the nuts - normal threading.

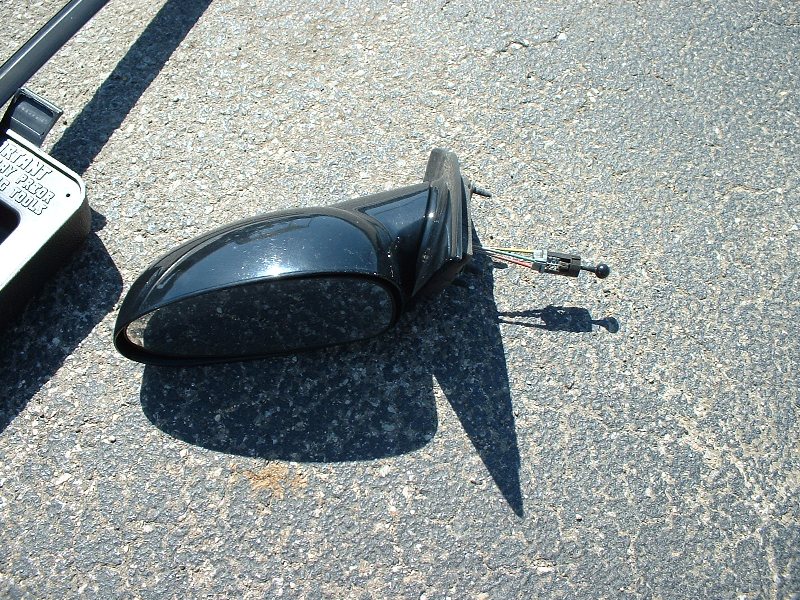

Step 3: Remove mirror. The 3 bolts should slide right out.  If the mirror has a manual control or wiring harness, guide it out carefully as well.





Installation



Installation is the reverse of removal.
