Remove the rear seat back

Guide Quick Jump:

'91-'95 SL / '91-'96 SC     '96-'02 SL / '97-'02 SC

'91-'95 SL

'91-'96 SC

Author:

(Sorry, this guide has not been created)

'96-'02 SL

'97-'02 SC

Author: PurdueGuy

Removal

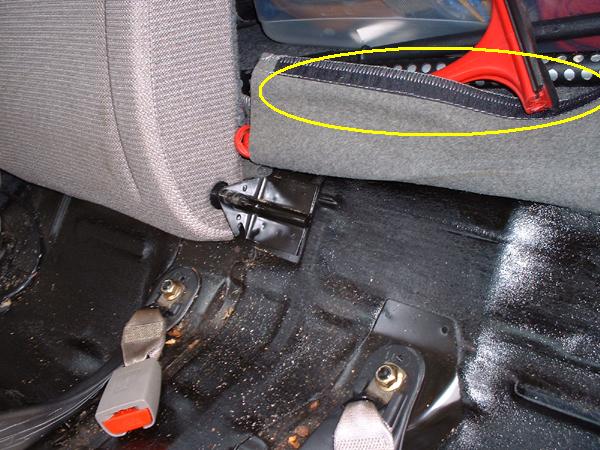

1. Undo Velcro attaching trunk liner



(Note: Seat base and half of seat back already removed in picture)



2. Unlatch Seatback at the top (as you would to fold the seat down)

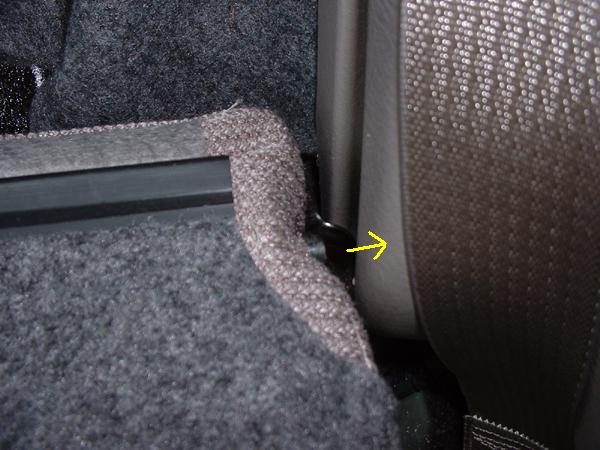

3. Pull retaining tab away from the seatback

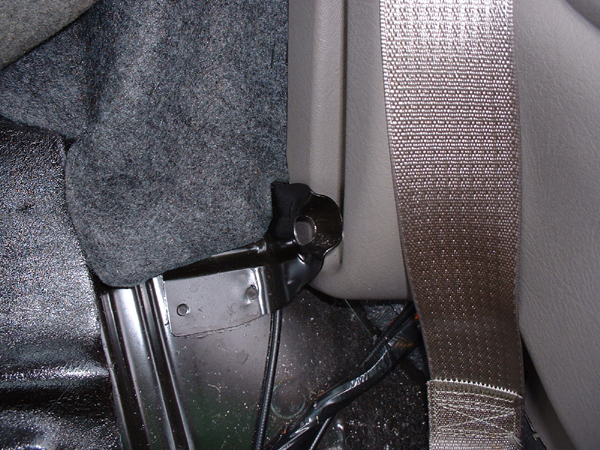

(View of the retaining tab with seatback removed)



4. Repeat for the other half of the seatback

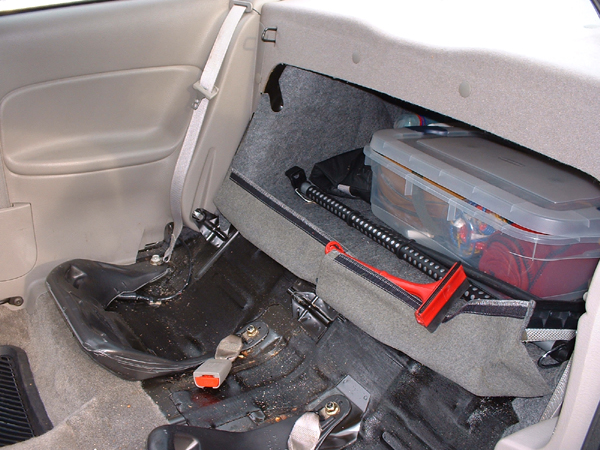

Rear seat back (and base) removed
