Remove / Install Spoiler

Guide Quick Jump:

'91-'95 SL     '91-'96 SC     '96-'02 SL     '97-'00 SC     '01-'02 SC

'91-'95 SL

Author:

(Sorry, this guide has not been created)

'91-'96 SC

Author:

(Sorry, this guide has not been created)

'96-'02 SL

Author:

(Sorry, this guide has not been created)

'97-'00 SC

Author: PurdueGuy

Needed:



Tools:

10mm socket

ratchet

Removal



Step 1: Open the trunk lid

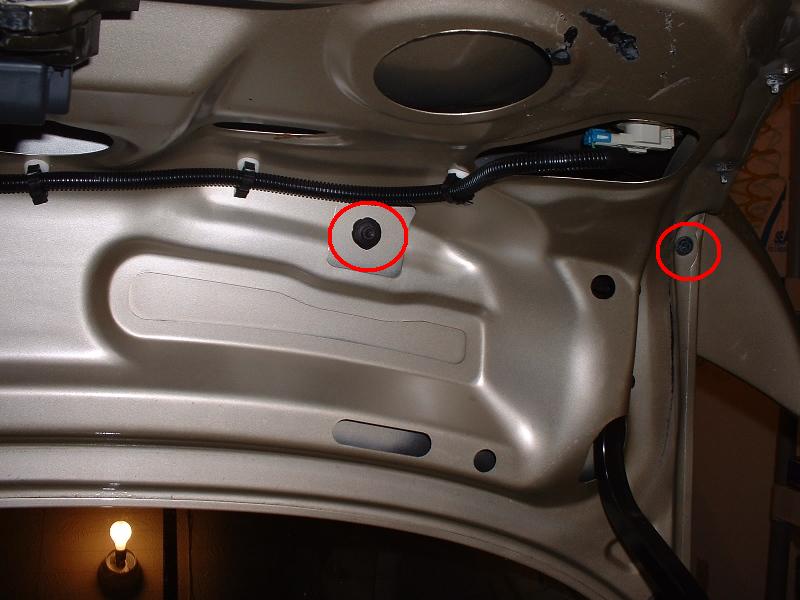

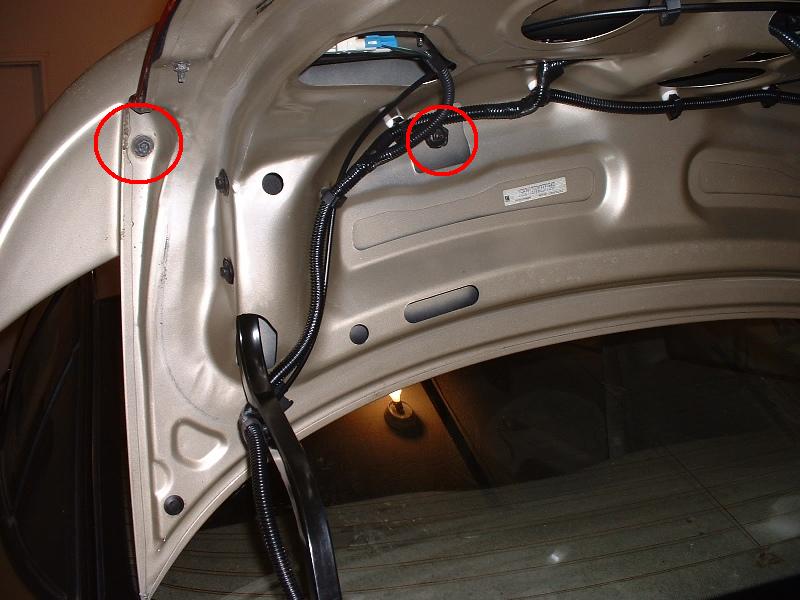

Step 2: Remove 4 bolts. Use your 10mm socket and remove the 4 bolts circled below on the underside of the trunk lid.  On the 2 inner ones, you may get just the nut, or both the nut and stud.





Step 3: Close the trunk lid.

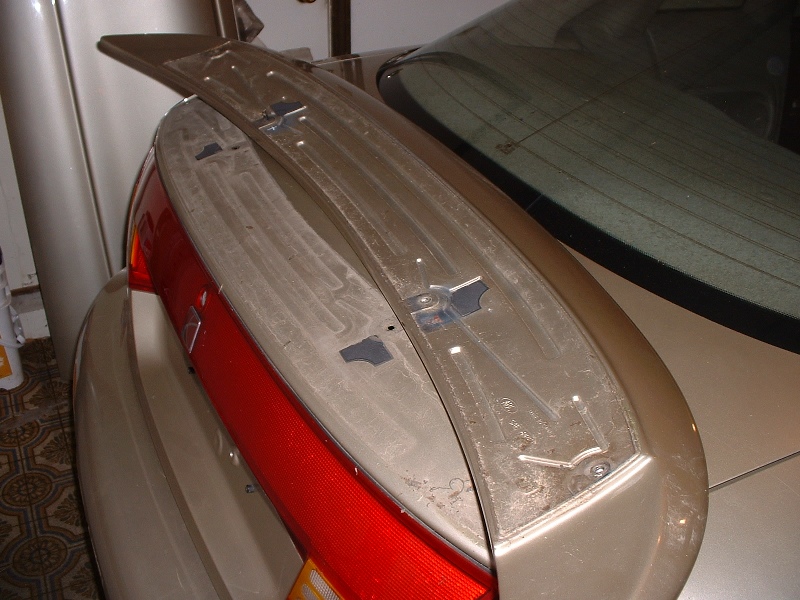

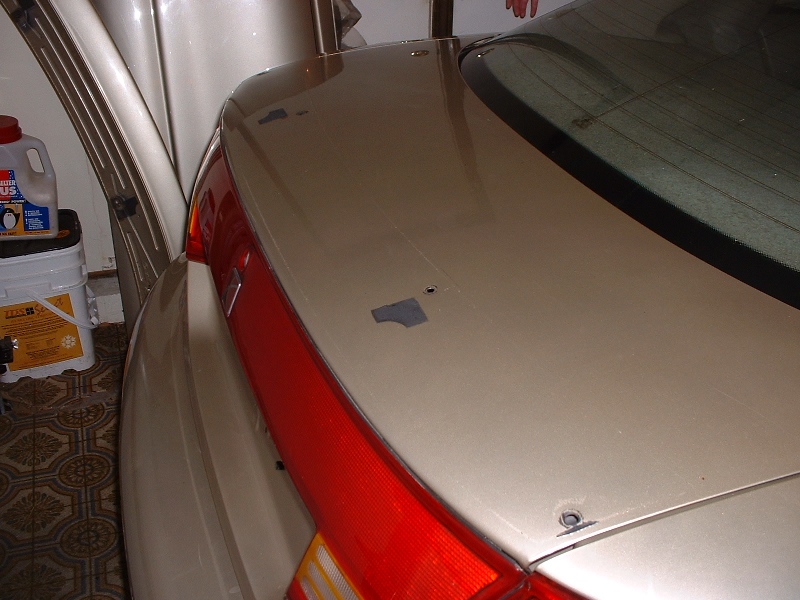

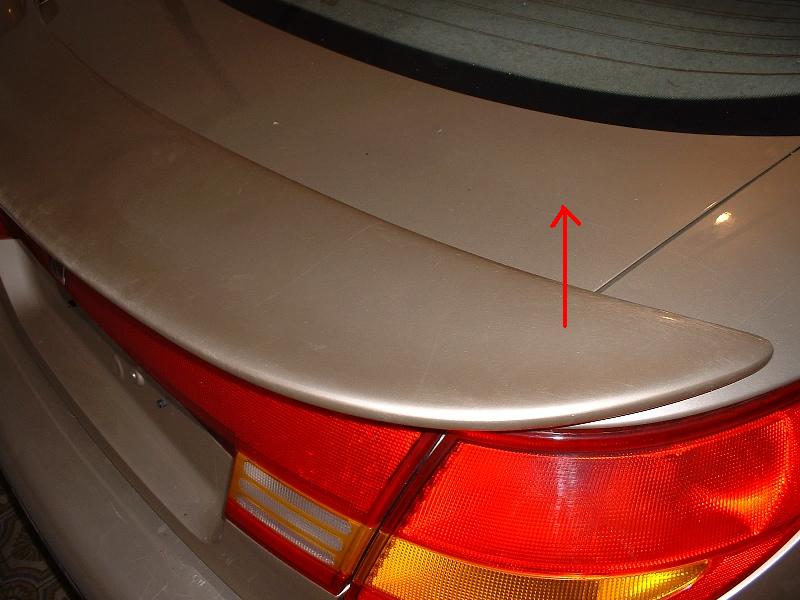

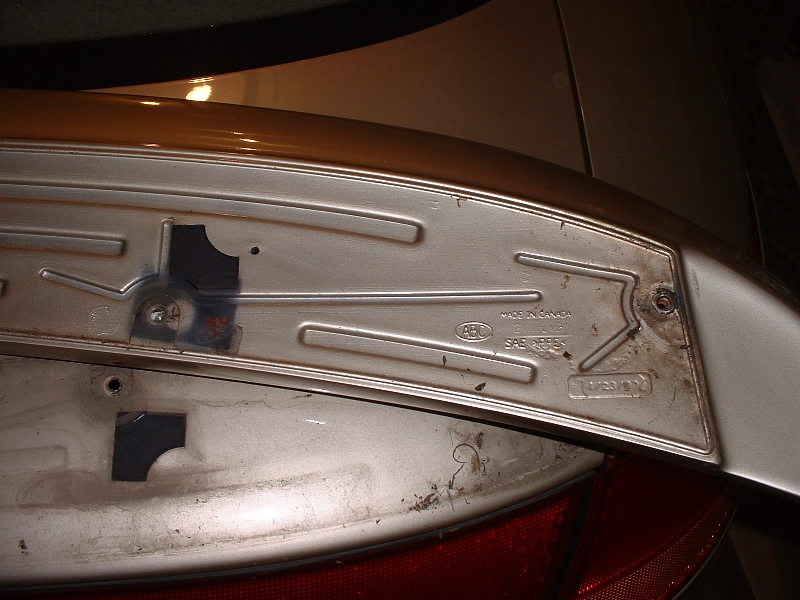

Step 4: Pull up on each end of the spoiler. In addition to the 4 nuts/bolts, the spoiler is held on by 2 adhesive pads toward the center of the trunk lid.  It shouldn't be too hard to break free, but don't be afraid to put some force into it.  Once both of the adhesive pads pop free, the spoiler should be loose.  It's likely to be dirty underneith.







Installation



Line it up with the holes, and put the nuts/bolts back in.

'01-'02 SC

Author:

(Sorry, this guide has not been created)
