Remove TPS and IAC from Throttlebody


Guide Quick Jump:

'91-'94 SOHC     '91-'99 DOHC     '00-'02 DOHC

'91-'94 SOHC

Author:

(Sorry, this guide has not been created)

'91-'99 DOHC

'91-'02 SOHC

Author: PurdueGuy

*These steps could be done with the throttlebody attached or removed.*

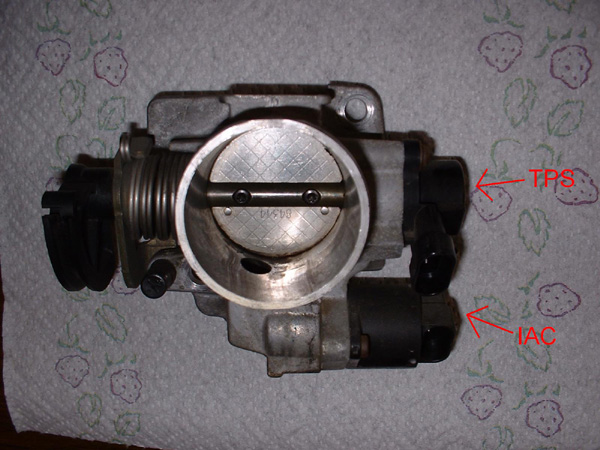

TPS = Throttle Position Sensor

IAC = Idle Air Control valve



Before removing the TPS and IAC, unplug them from the wiring harnesses attached to them.  Simply pull outward on the tab that clicks each into place, and pull the plug out of the harness.

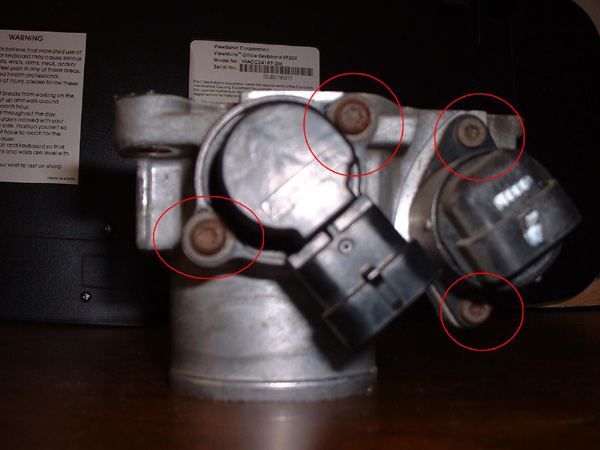

To remove both parts, simply use a torx tool and loosen 2 screws on each.

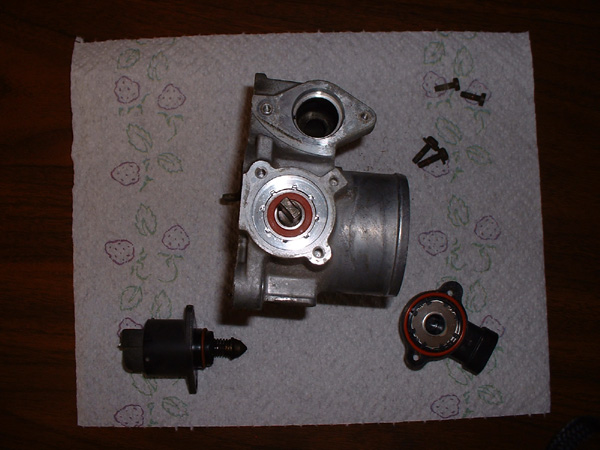

Parts removed:



'00-'02 DOHC

Author:

(Sorry, this guide has not been created)
