Remove / Install A-Pillar Trim

Guide Quick Jump:

'91-'95 SL & SW / '91-'96 SC     '96-'00 SL & SW / '97-'00 SC     '01-'02 S-Series

'91-'95 SL & SW

'91-'96 SC

Author:

(Sorry, this guide has not been created)

'96-'02 SL & SW

'97-'02 SC

Author: PurdueGuy

Removal

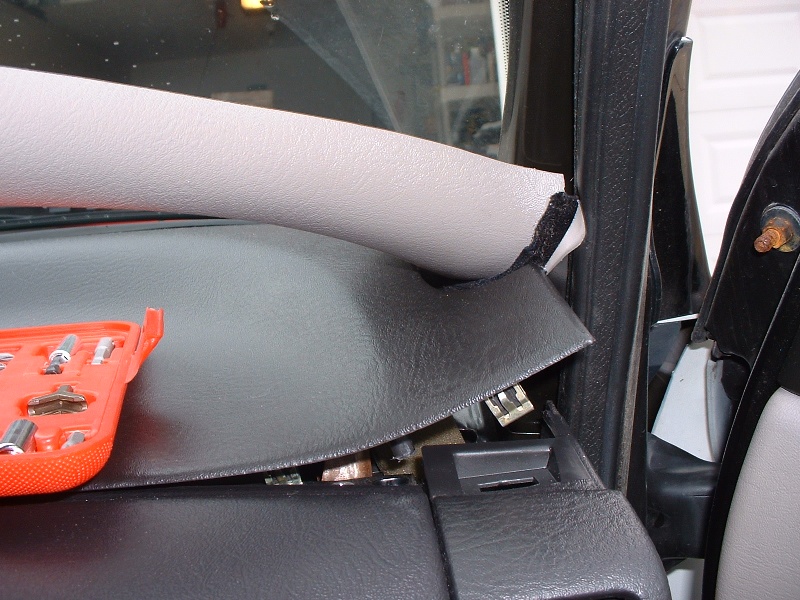

Step 1: Remove the Dashboard Cover  Below is a picture of the struggle you'll go through if you try to wiggle it out without removing the dashboard cover...









< don't do this, just take the dash cover off...

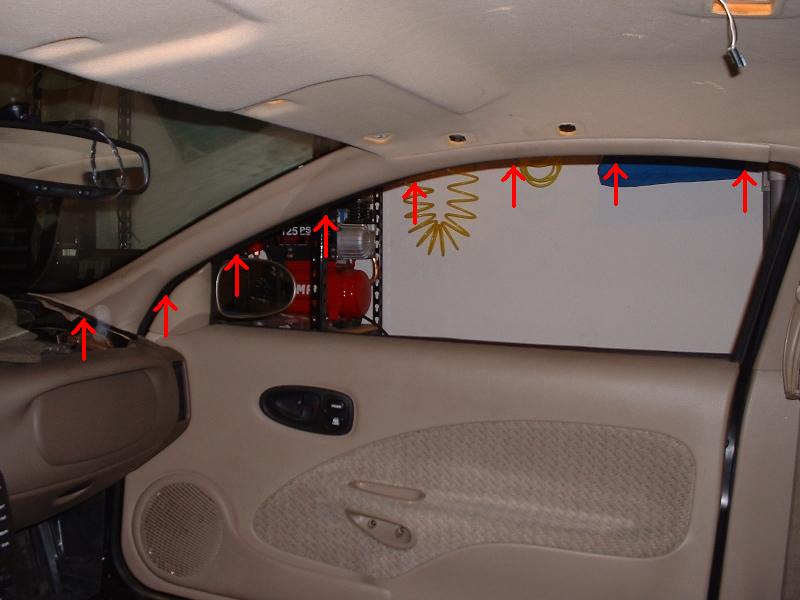

Step 2: Pull trim outward.  The trim is held on by metal clips.  Start at the top or bottom, and work your way along the trim, carefully but firmly pulling the trim outward to dislodge the clips.



Installation



Installation is the reverse of removal - line the clips up & push to snap them back in, then re-install the dashboard cover.

'01-'02 S-Series

Author:

(Sorry, this guide has not been created)

Click here to return to the Guide Index.
