Remove / Install Defrost Vent Duct

Guide Quick Jump:

'91-'94 S-Series     '95-'02 S-Series

'91-'94 S-Series

Author: PurdueGuy

Needed:



Tools:

Ratchet

7mm socket

Removal

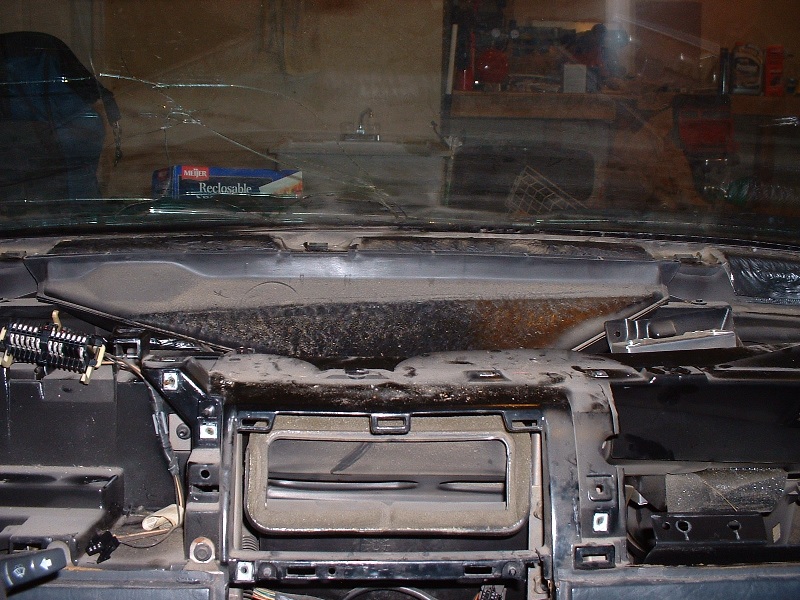

Step 1: Remove dash cover

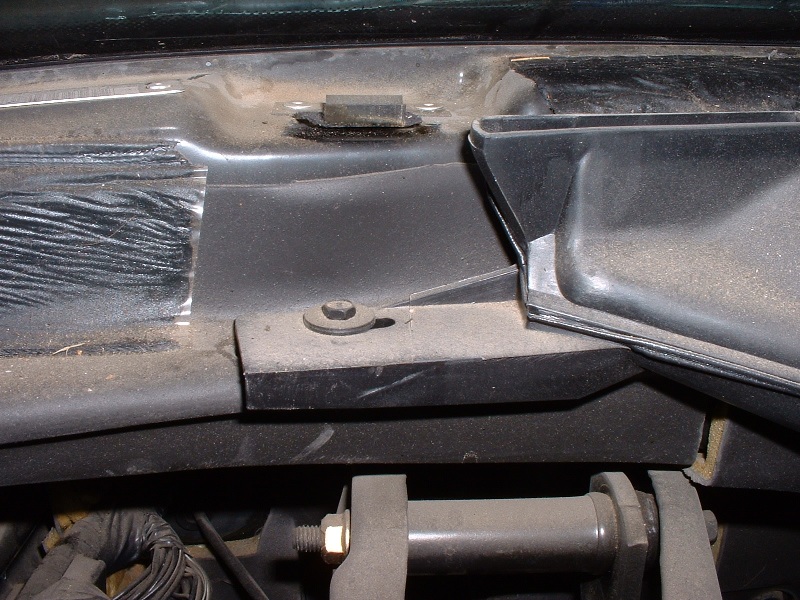

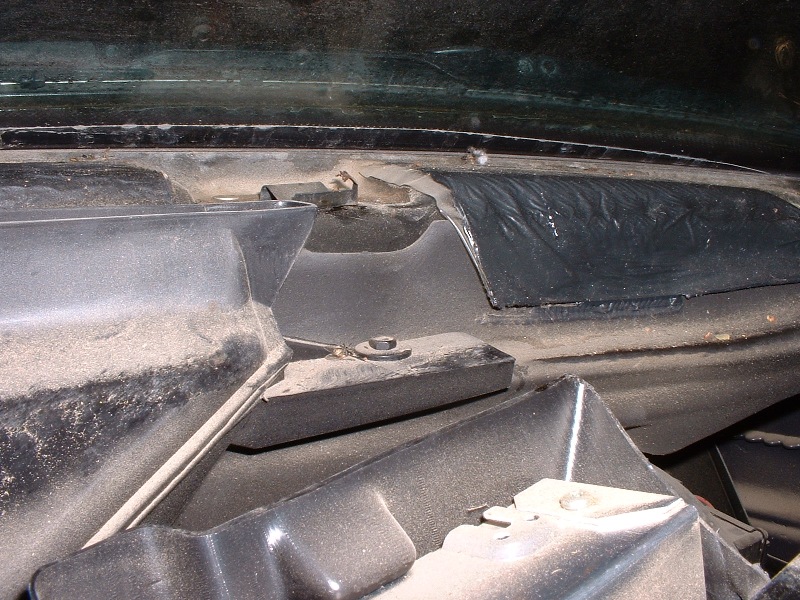

Step 2: Remove 2 7mm screws. These are at the top of the duct by the windshield.

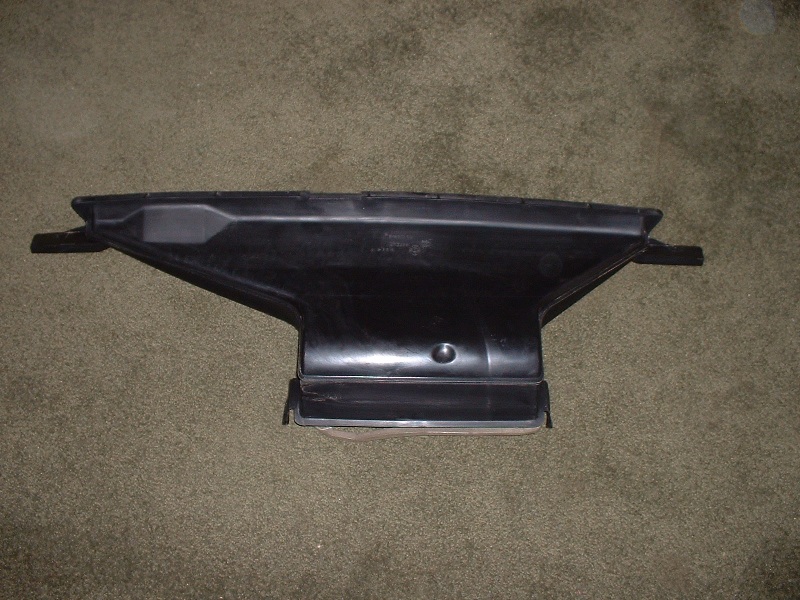

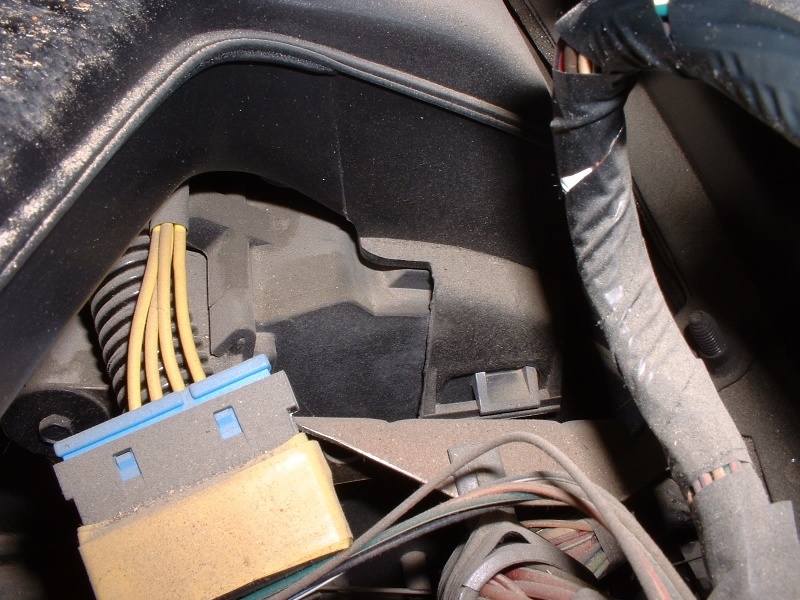

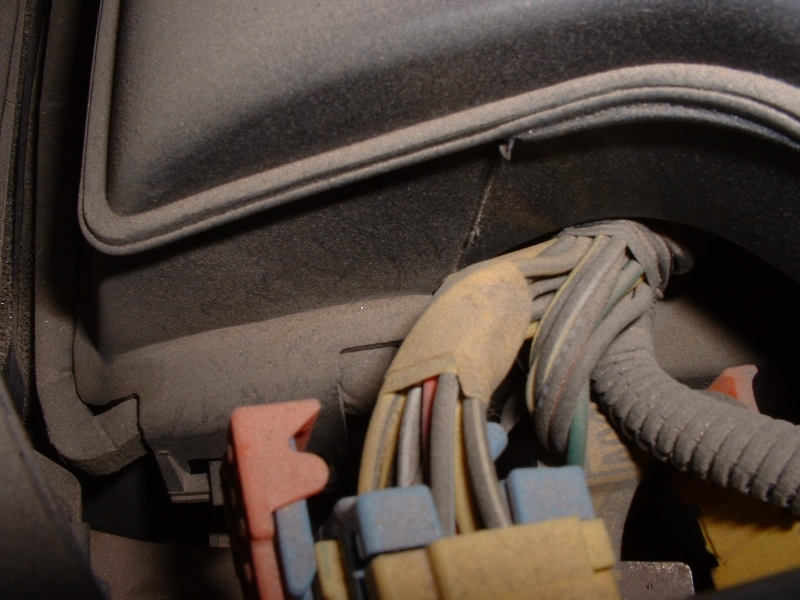

Step 3: Unsnap and remove. It is held in place by snaps on each side. You can unsnapi it with your hands.  Start with the driver's side, then wiggle it loose from the passenger side clip.  I found I got the best leverage/angle from the passenger seat.  You can see the snaps if you get out of the car and look through the windshield.





Installation



Installation is pretty much reverse of removal.

'95-'02 S-Series

Author:

(Sorry, this guide has not been created)
