Needed:
Tools:
Flat-head screwdriver
or other prying tool
Philips screwdriver
Removal
Step 1:
Remove the
triangular trim piece. If it's attached to the
mirror by cables (manual adjuster) or a wiring harness
(power adjuster), you can either detach it or let it dangle.

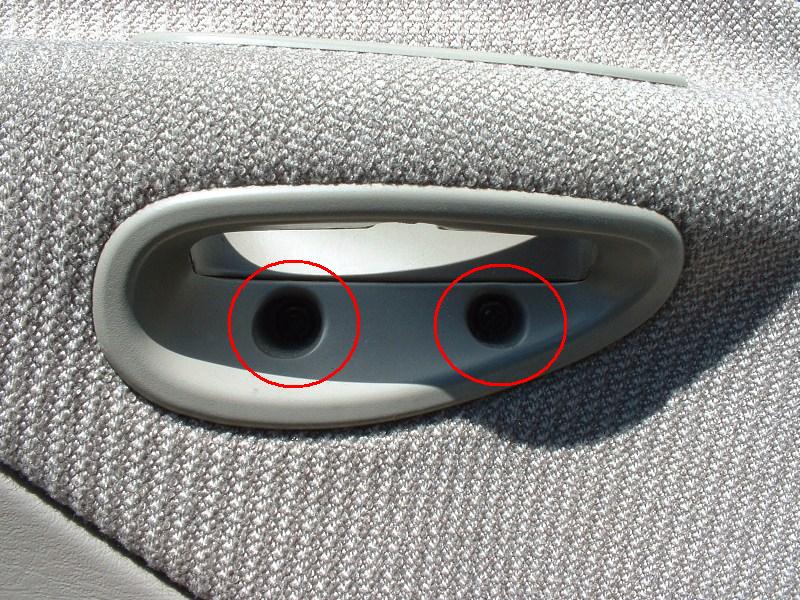

Step 2: Remove 2 screws in
handle. There is a 3rd screw going into the handle
vertically - no need to remove it.

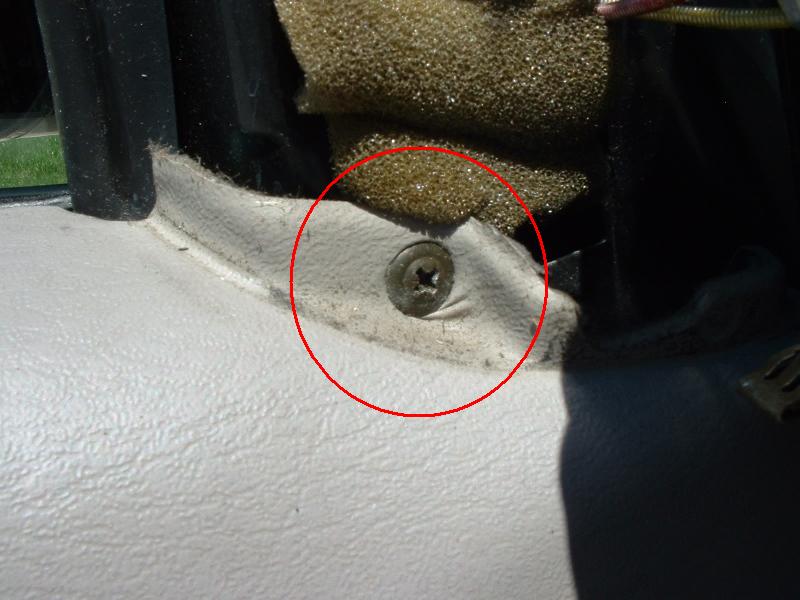

Step 3: Remove the screw by the mirror.
Step 4:
Remove
Interior Door Handle

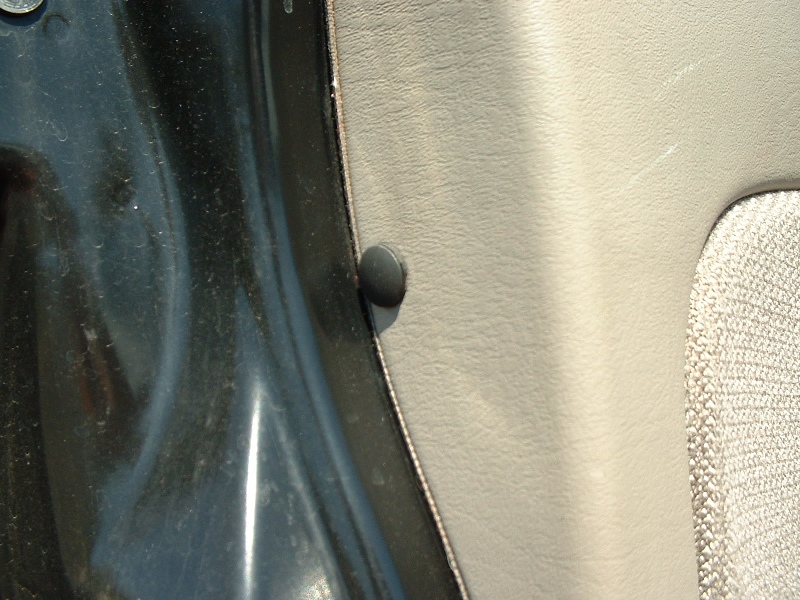

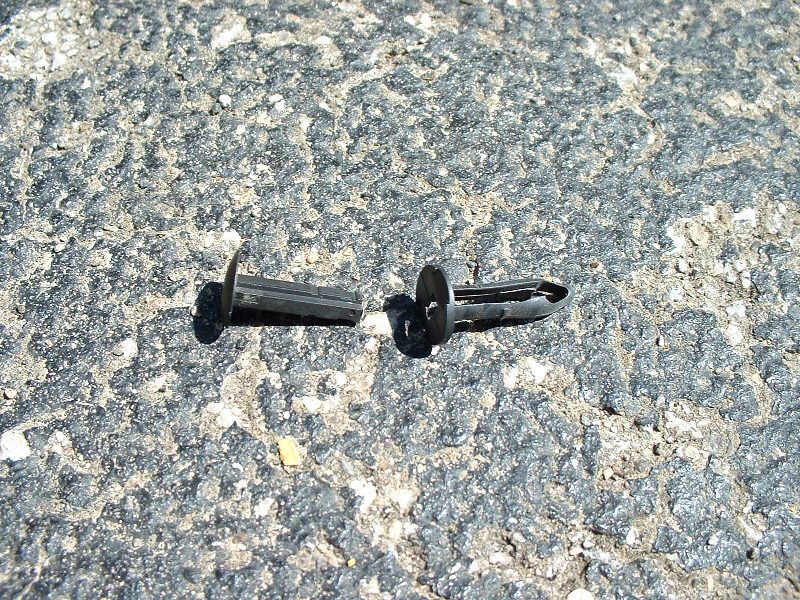

Step 5: Remove 2-piece peg on
the outer end of the door. Using the flathead
screwdriver, pry the outer part of the head out to remove
the inner peg. Once that peg is out, remove the outer
part of the peg.

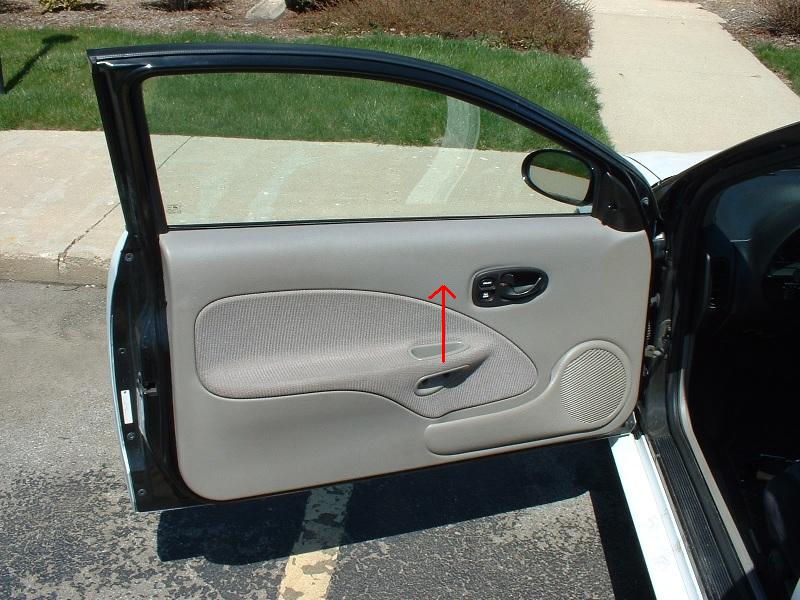

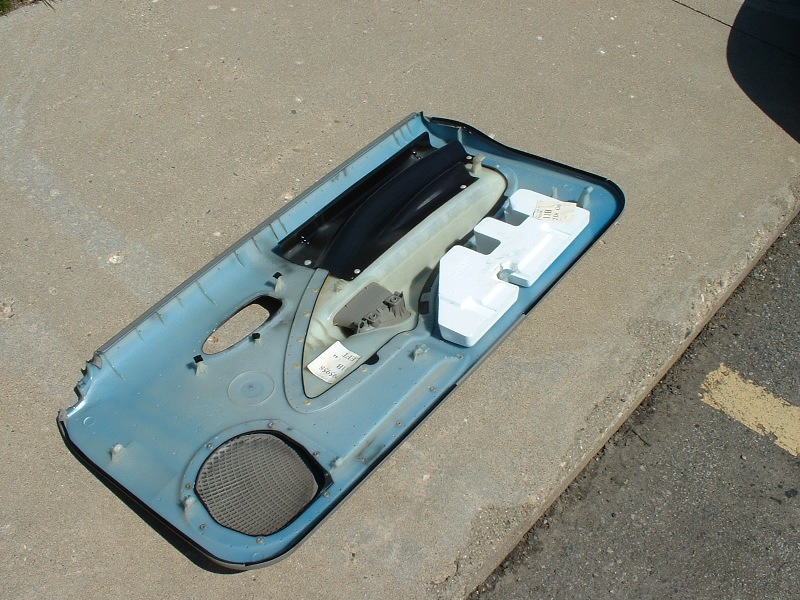

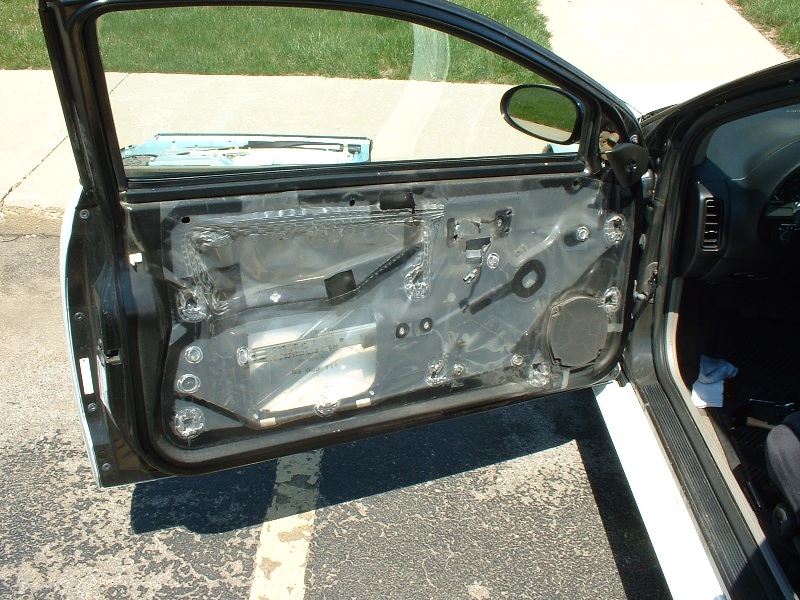

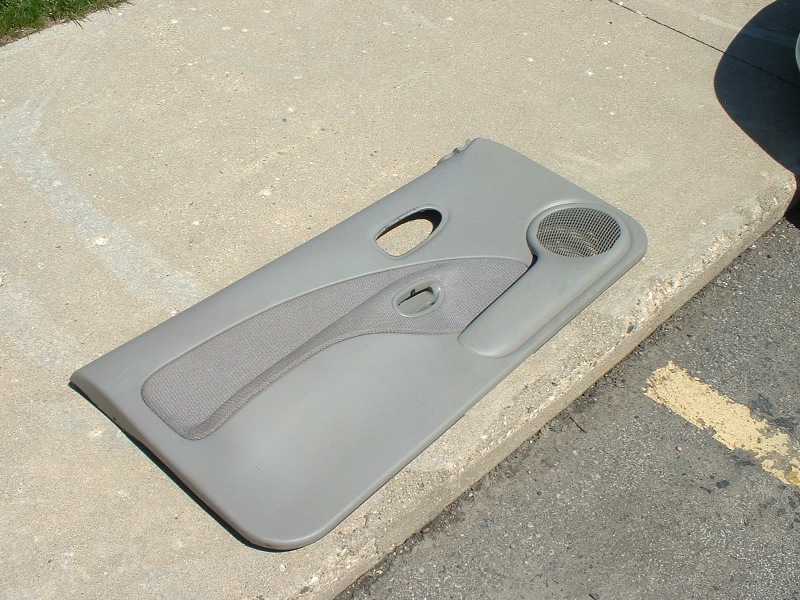

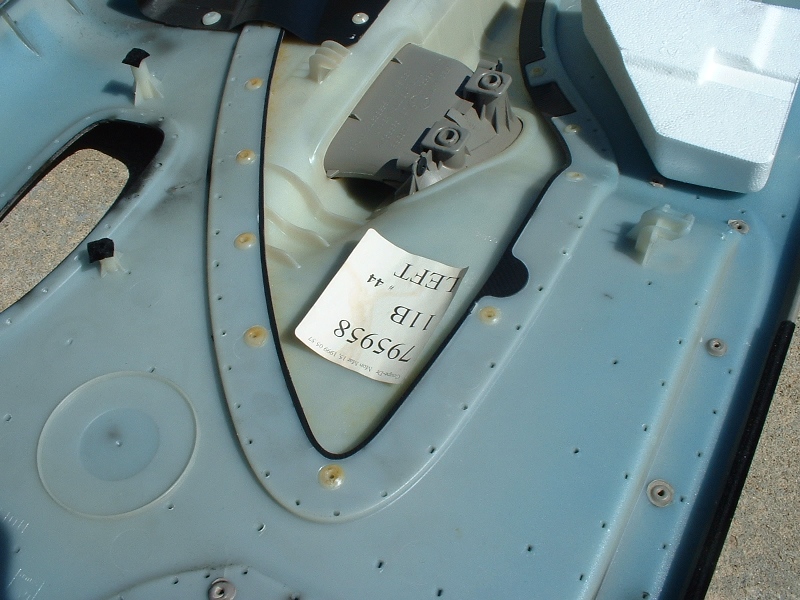

Step 6: Lift the panel and
remove it. It should just come right off.
Installation
Installation is pretty much the
reverse of removal. When hanging the door panel on the
door, there are a set of hooks that will have to settle in
place. It should just fall into place - if it doesn't
lift it completely off and try again. You won't be
able to make small adjustments to get it to fit. Once
the panel is on, I recommend starting by putting the 2
handle screws in, just to make sure the panel stays put.
Then just reattach everything else.
