Throttlebody Removal

Guide Quick Jump:

'91-'94 SOHC     '91-'99 DOHC     '95-'02 SOHC     '00-'02 DOHC

'91-'94 SOHC

Author:

(Sorry, this guide has not been created)

'91-'99 DOHC

Author:

(Sorry, this guide has not been created)

'95-'02 SOHC

Author: PurdueGuy

Step 1) Remove stock intake system



Step 2) Remove Throttle Cable



While holding the cable, push & turn the quarter circle piece on the throttlebody so you can get some slack in the cable.  The end of the cable has a round knobby thing on it holding it into the quarter circle bracket.  Use the slack in the cable to turn the knobby piece so that it & the cable slide out of the quarter circle bracket.





Step 3) Remove Vacuum Block



This piece just unsnaps - be gentle.

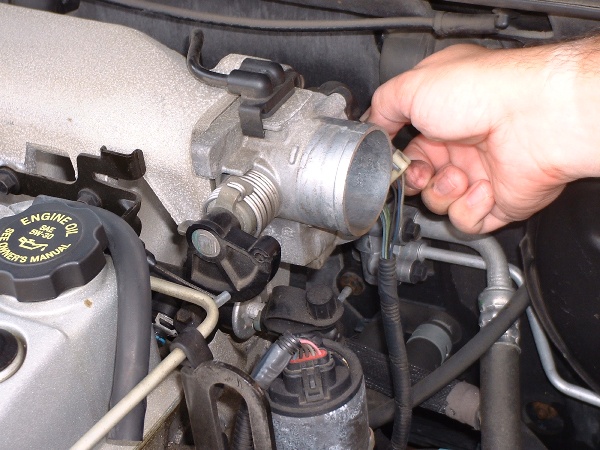

Step 4) Remove Wiring Plug from Throttle Position Sensor (TPS) and Idle Air Control (IAC) Valve



Pretty straightforward unplug job - little clip on the side.





Step 5) Remove 2 Bolts



Use a ratchet & socket (metric - forget size) to remove these 2 bolts.  Once they're out, just carefully take the throttlebody off the car - it should be somewhat loose, but may stick to the gasket a bit.



'00-'02 DOHC

Author:

(Sorry, this guide has not been created)
