Remove / Install Sunroof Switch




All S-Series

Author: PurdueGuy




Needed:



Tools:

Flathead screwdriver or other prying device

Removal



Step 1: Remove Map Light Cover.

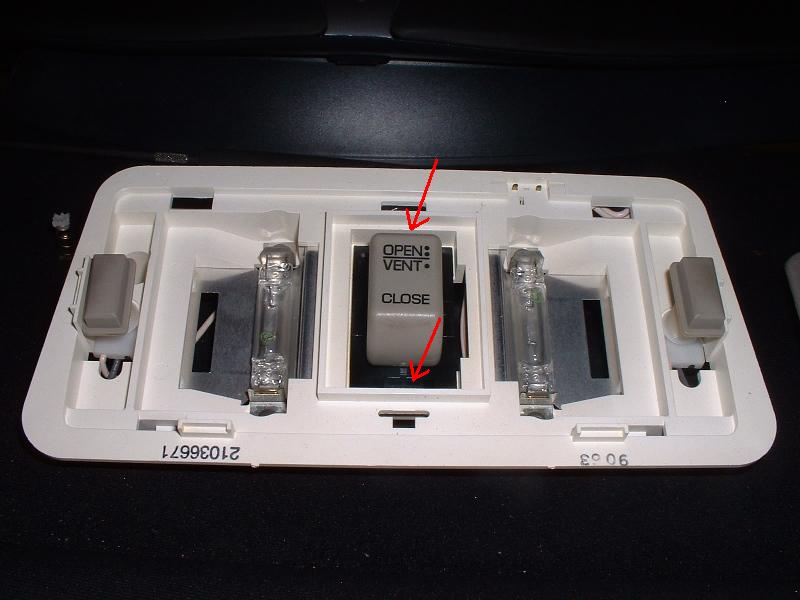

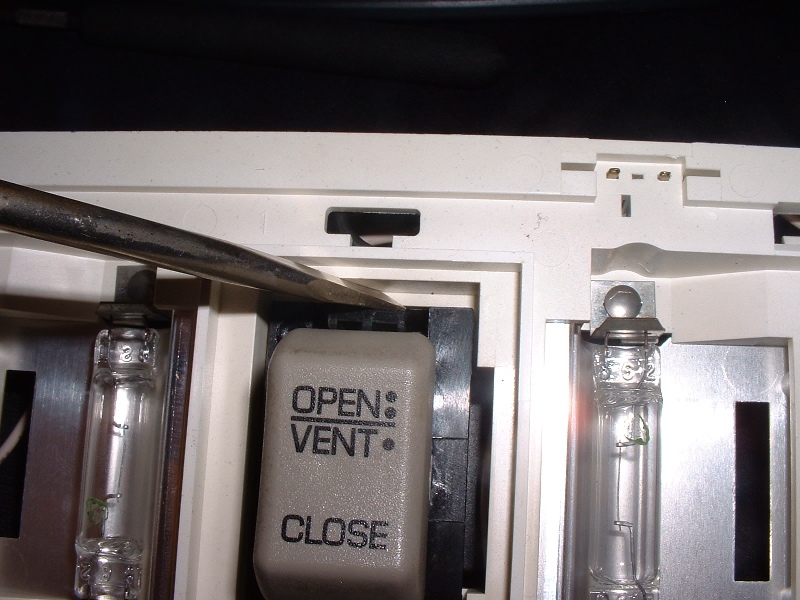

Step 2: Unclip the switch. Use your screwdriver to unclip the front & back ends of the switch, and pry downward slightly.  It doesn't take much force.  Once both sides are free, carefully pull the switch downward, working the wires along with it.





Step 3: Unhook the wiring harness. The harness is held on in one spot.  Use your screwdriver to lift the clip out of the way, and pull the wire harness out.  The switch should now be free.



Install



Step 1: Plug in the wiring harness. It is keyed, so it cannot be plugged in incorrectly.



Step 2: Push the switch into place. The wiring harness will point to the passenger side.  The switch should click right into place.
