This mod will result
in the corner lights also functioning as turn signal lights.
When the headlights are off, the corner lights will act as
turn signals. When the parking lights or headlights
are on, the corner lights will still act as corner lights,
but blink when the turn signal is on. While headlights
are off, the corner light and turn signal will blink in
sync. When the headlights are on, they will blink
alternately.
Step 1:
Remove the corner lights.

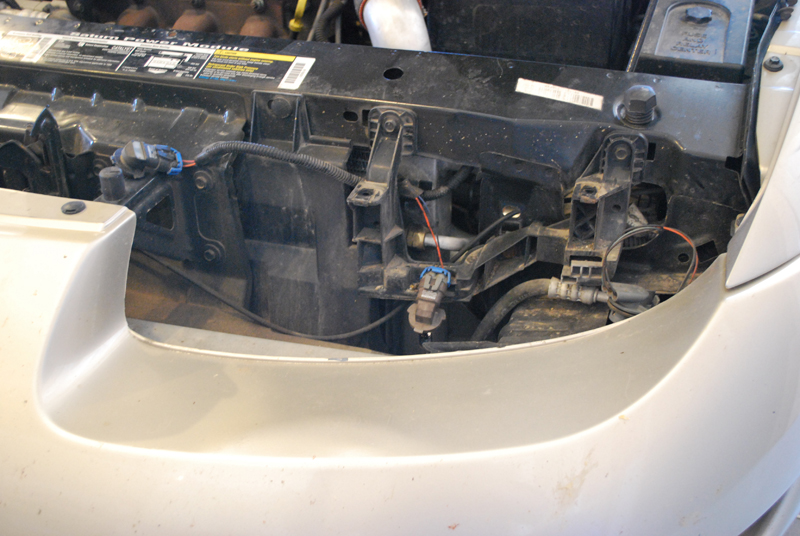

Step 2:
Remove the
headlights.

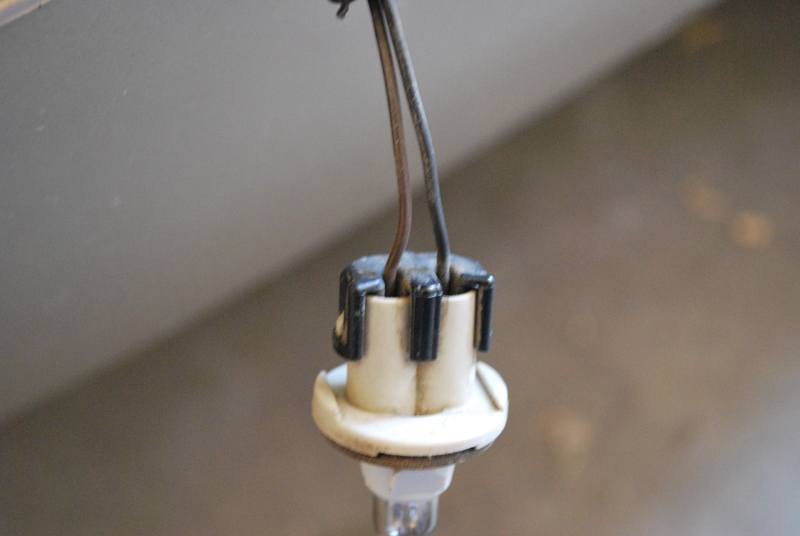

Step 3: Splice an
about 18" length of wire to the black wire to the side
marker light. Tape off the wire leading into the
body of the car to prevent any shorts or corrosion in case
you need it someday. Attach your length of wire to the
black wire leading into the bulb socket.

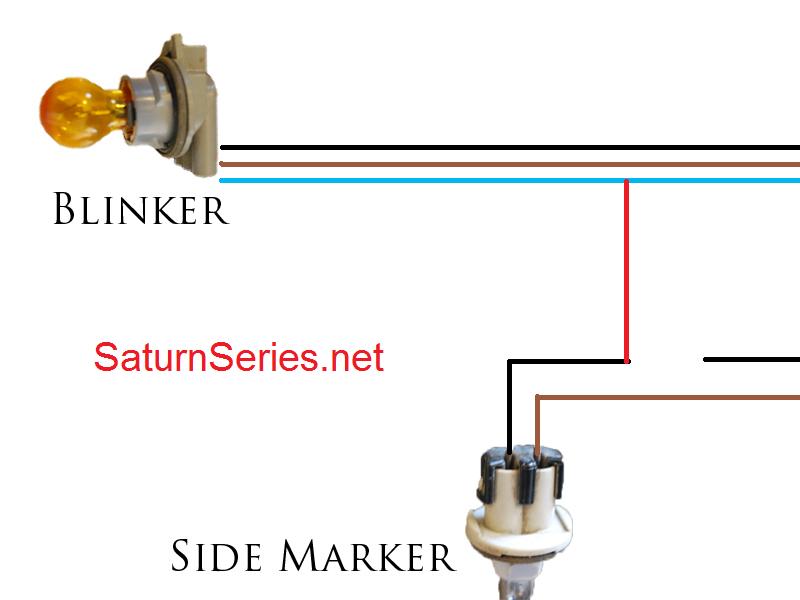

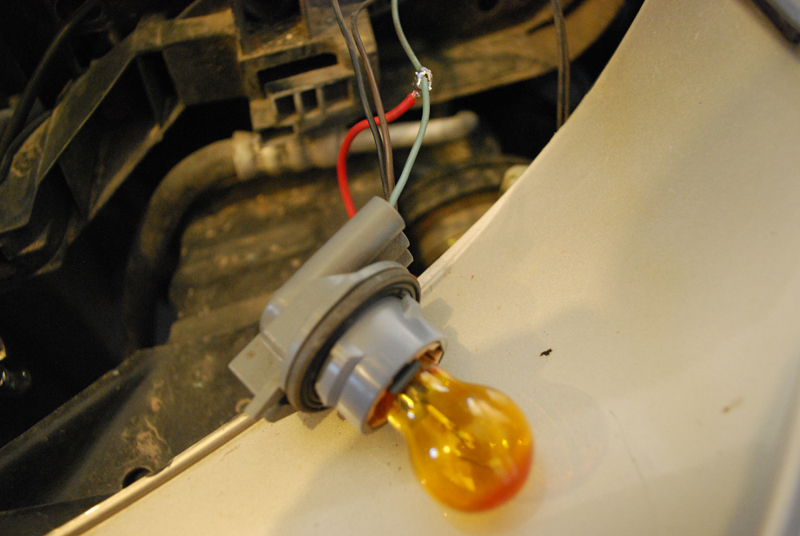

Step 4: Splice the
other end of the wire into the blue-green wire leading to
the turn signal bulb. The blue-green wire should
remain connected. You can strip away a section of the
insulation from the blue-green wire and connect the other
end of your linking wire, as pictured below.

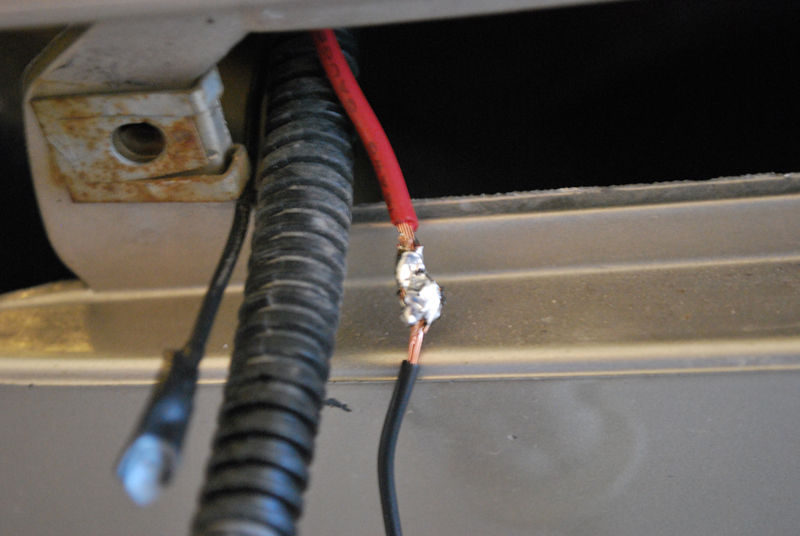

Step 5: Protect the
splices.
Be sure to protect from corrosion. I used some
paint-on electrical tape/sealant.
Step 6: Repeat for
the other side. The blue-green wire may be more
blue on one side, but otherwise, the steps are the same.
