Remove / Install Interior Door Trim

(Click here to return to Interior Door Trim Menu)

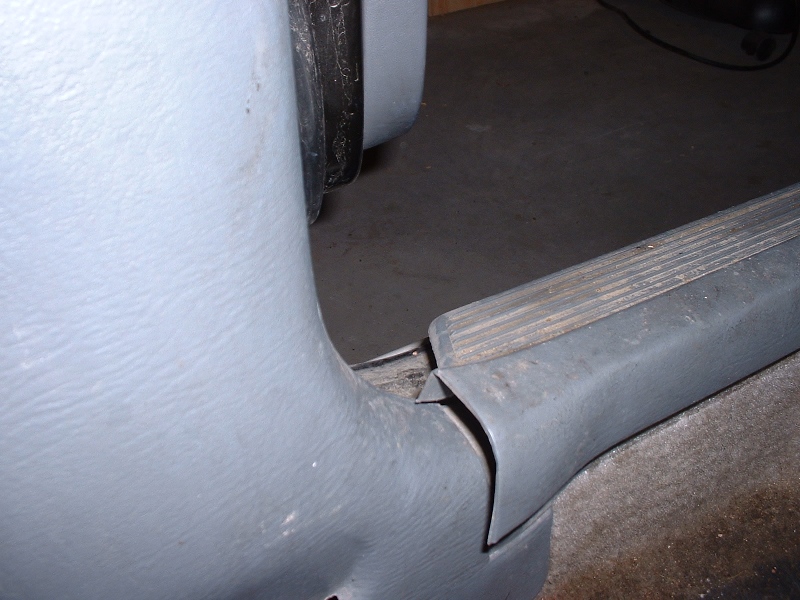

'91-'94 SL1 & SL2: Lower B-Pillar Trim

Author: PurdueGuy

Needed:



Tools:

Small prying device (optional)

Removal



Step 1: Loosen or remove overlapping trim.  Three pieces of trim - the front door upper trim, the front door lower trim, and the rear door lower trim - overlap with this one, and they need to be loosened or removed.



How to remove front door upper trim

How to remove front door lower trim

How to remove rear door lower trim





Step 2: Slide the trim piece upward.  It will slide up about an inch, takes a fair amount of effort.



Step 3: Slide seatbelt through hole.  Slip it through enough that it won't catch when you get the trim piece free.



Step 4: Peel the edges of the trim piece off as much as possible, then slide the trim piece downward.  It should pop right off.



Installation



Installation is the reverse of removal.
